Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: RouteModeInstructionType
Namespace: http://niem.gov/niem/external/dhs-gmo/AS/multiModalRoute/1.0.0
Type: xls:RouteInstructionType
Containing Schema: multiModalRoute.xsd
Abstract
Documentation:
Extended route instruction with mode information.
Collapse XSD Schema Diagram:

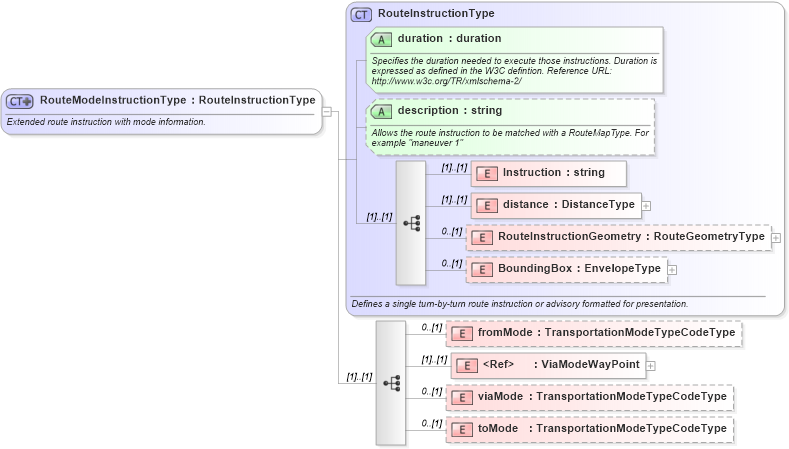

Drilldown into toMode in schema multimodalroute_xsd Drilldown into viaMode in schema multimodalroute_xsd Drilldown into ViaModeWayPoint in schema multimodalroute_xsd Drilldown into fromMode in schema multimodalroute_xsd Drilldown into BoundingBox in schema ols_xsd Drilldown into RouteInstructionGeometry in schema ols_xsd Drilldown into distance in schema ols_xsd Drilldown into Instruction in schema ols_xsd Drilldown into description in schema ols_xsd Drilldown into duration in schema ols_xsd Drilldown into RouteInstructionType in schema ols_xsdXSD Diagram of RouteModeInstructionType in schema multimodalroute_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<complexType name="RouteModeInstructionType">
    <annotation>
        <documentation>Extended route instruction with mode information.</documentation>
    </annotation>
    <complexContent>
        <extension base="xls:RouteInstructionType">
            <sequence>
                <element name="fromMode" type="mmr:TransportationModeTypeCodeType" minOccurs="0" />
                <element ref="mmr:ViaModeWayPoint" />
                <element name="viaMode" type="mmr:TransportationModeTypeCodeType" minOccurs="0" />
                <element name="toMode" type="mmr:TransportationModeTypeCodeType" minOccurs="0" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Instruction xls:Instruction (1) (1)
distance xls:distance (1) (1)
RouteInstructionGeometry xls:RouteInstructionGeometry 0 (1)
BoundingBox xls:BoundingBox 0 (1)
fromMode mmr:fromMode 0 (1)
ViaModeWayPoint mmr:ViaModeWayPoint (1) (1)
viaMode mmr:viaMode 0 (1)
toMode mmr:toMode 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
duration xls:duration Required
description xls:description (Optional)
