Documentation for News Markup Language (NewsML)
Definition Type: Element
Name: ContentItem
Containing Schema: NewsML_1.2.xsd
Abstract
Documentation:
================================= ContentItem ================================== A news object that carries or identifies content intended for presentation to humans. ================================================================================

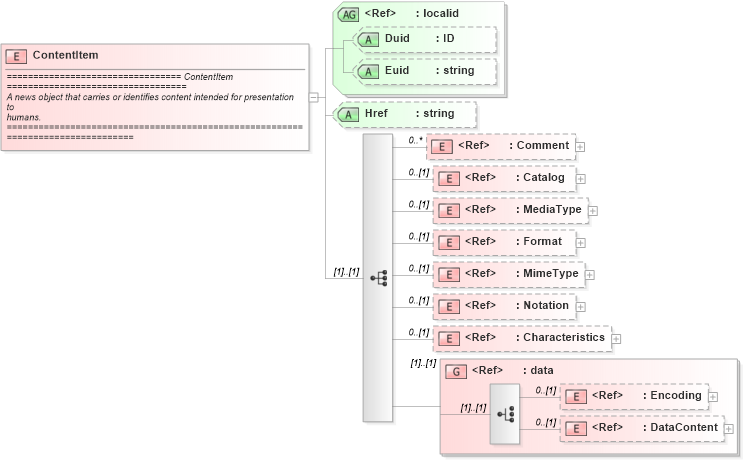

Collapse XSD Schema Diagram:
Drilldown into DataContent in schema newsml_1_2_xsd Drilldown into Encoding in schema newsml_1_2_xsd Drilldown into data in schema newsml_1_2_xsd Drilldown into Characteristics in schema newsml_1_2_xsd Drilldown into Notation in schema newsml_1_2_xsd Drilldown into MimeType in schema newsml_1_2_xsd Drilldown into Format in schema newsml_1_2_xsd Drilldown into MediaType in schema newsml_1_2_xsd Drilldown into Catalog in schema newsml_1_2_xsd Drilldown into Comment in schema newsml_1_2_xsd Drilldown into Href in schema newsml_1_2_xsd Drilldown into Euid in schema newsml_1_2_xsd Drilldown into Duid in schema newsml_1_2_xsd Drilldown into localid in schema newsml_1_2_xsdXSD Diagram of ContentItem in schema newsml_1_2_xsd (News Markup Language (NewsML))
Collapse XSD Schema Code:
<xs:element name="ContentItem">
    <xs:annotation>
        <xs:documentation>
================================= ContentItem ==================================
A news object that carries or identifies content intended for presentation to
humans.
================================================================================

			</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="Comment" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Catalog" minOccurs="0" />
            <xs:element ref="MediaType" minOccurs="0" />
            <xs:element ref="Format" minOccurs="0" />
            <xs:element ref="MimeType" minOccurs="0" />
            <xs:element ref="Notation" minOccurs="0" />
            <xs:element ref="Characteristics" minOccurs="0" />
            <xs:group ref="data" />
        </xs:sequence>
        <xs:attributeGroup ref="localid" />
        <xs:attribute name="Href" type="xs:string" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Comment Comment 0 unbounded
Catalog Catalog 0 (1)
MediaType MediaType 0 (1)
Format Format 0 (1)
MimeType MimeType 0 (1)
Notation Notation 0 (1)
Characteristics Characteristics 0 (1)
Encoding Encoding 0 (1)
DataContent DataContent 0 (1)
<xs:group> data (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Duid Duid (Optional)
Euid Euid (Optional)
Href Href (Optional)
