Definition Type: Element
Name: Origin
Containing Schema: NewsML_1.2.xsd
Abstract
Documentation:
==================================== Origin ==================================== A wrapper for all or part of the text of a piece of text, which provides a pointer to an item of data corresponding formally to what is being described here in natural language. The Href attribute identifies the relevant data, and may be an http URL or a NewsML URN as described in the comment to PublicIdentifier, optionally including a fragment identifier. Alternatively, it can be a simple fragment identifier consisting of a # character followed by the value of the Duid of an element in the current document. ================================================================================

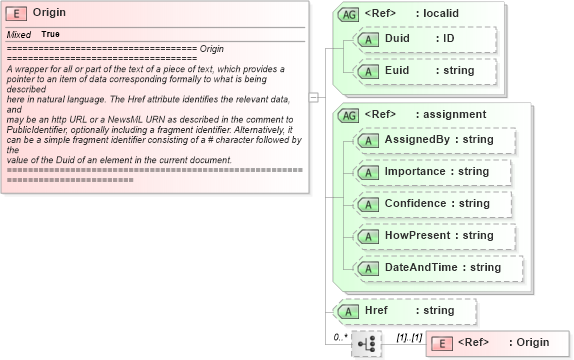

Collapse XSD Schema Diagram:
Drilldown into Origin in schema newsml_1_2_xsd Drilldown into Href in schema newsml_1_2_xsd Drilldown into DateAndTime in schema newsml_1_2_xsd Drilldown into HowPresent in schema newsml_1_2_xsd Drilldown into Confidence in schema newsml_1_2_xsd Drilldown into Importance in schema newsml_1_2_xsd Drilldown into AssignedBy in schema newsml_1_2_xsd Drilldown into assignment in schema newsml_1_2_xsd Drilldown into Euid in schema newsml_1_2_xsd Drilldown into Duid in schema newsml_1_2_xsd Drilldown into localid in schema newsml_1_2_xsdXSD Diagram of Origin in schema newsml_1_2_xsd (News Markup Language (NewsML))
Collapse XSD Schema Code:
<xs:element name="Origin">
    <xs:annotation>
        <xs:documentation>
==================================== Origin ====================================
A wrapper for all or part of the text of a piece of text, which provides a
pointer to an item of data corresponding formally to what is being described
here in natural language. The Href attribute identifies the relevant data, and
may be an http URL or a NewsML URN as described in the comment to
PublicIdentifier, optionally including a fragment identifier. Alternatively, it
can be a simple fragment identifier consisting of a # character followed by the
value of the Duid of an element in the current document.
================================================================================

			</xs:documentation>
    </xs:annotation>
    <xs:complexType mixed="true">
        <xs:choice minOccurs="0" maxOccurs="unbounded">
            <xs:element ref="Origin" />
        </xs:choice>
        <xs:attributeGroup ref="localid" />
        <xs:attributeGroup ref="assignment" />
        <xs:attribute name="Href" type="xs:string" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Origin Origin (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Duid Duid (Optional)
Euid Euid (Optional)
AssignedBy AssignedBy (Optional)
Importance Importance (Optional)
Confidence Confidence (Optional)
HowPresent HowPresent (Optional)
DateAndTime DateAndTime (Optional)
Href Href (Optional)
