Definition Type: Element
Name: Property
Containing Schema: NewsML_1.2.xsd
Abstract
Documentation:
=================================== Property =================================== A property of a NewsItem, NewsComponent, ContentItem, Topic, Location or Party. The property has a name and either a simple Value or a complex value consisting of a set of further properties. The property has a name and either a simple Value or a complex value consisting of a set of further properties. Value ===== A string representation of the value of a Property. ValueRef ======== A pointer to the value of the Property. This might be a Topic in a TopicSet, or any other piece of data. If both Value and ValueRef are provided, then ValueRef identifies the actual value of the property, with Value simply providing a string representation or mnemonic for it. AllowedValues ============= The AllowedValues attribute, if present, is a pointer to a controlled vocabulary that delimits the set of allowed values for the property. This may be an http URL, or a NewsML URN, or a fragment identifier consisting of a # charactger followed by the Duid of an element in the current document. The pointer must reference either a Resource element that designates an external controlled vocabulary, or a TopicSet element, that is itself the controlled vocabulary. AllowedScheme (added in Version 1.1) ============= The AllowedScheme attribute, if present, distinguishes the Scheme in a controlled vocabulary that delimits the set of allowed values for the property. For a match to be obtained within the controlled vocabulary both the AllowedScheme must match the Scheme in the vocabulary and the Value must match the FormalName in the vocabulary. The use of the AllowedScheme attribute serves to indicate that the Value data is drawn from a controlled vocabulary rather that being an uncontrolled entry. ================================================================================

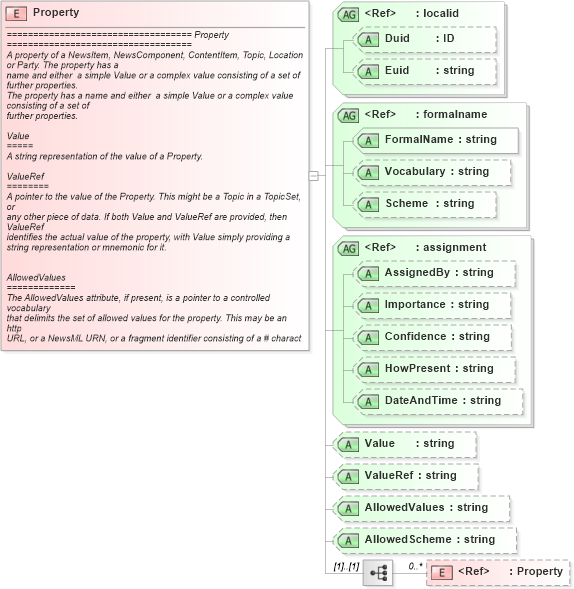

Collapse XSD Schema Diagram:
Drilldown into Property in schema newsml_1_2_xsd Drilldown into AllowedScheme in schema newsml_1_2_xsd Drilldown into AllowedValues in schema newsml_1_2_xsd Drilldown into ValueRef in schema newsml_1_2_xsd Drilldown into Value in schema newsml_1_2_xsd Drilldown into DateAndTime in schema newsml_1_2_xsd Drilldown into HowPresent in schema newsml_1_2_xsd Drilldown into Confidence in schema newsml_1_2_xsd Drilldown into Importance in schema newsml_1_2_xsd Drilldown into AssignedBy in schema newsml_1_2_xsd Drilldown into assignment in schema newsml_1_2_xsd Drilldown into Scheme in schema newsml_1_2_xsd Drilldown into Vocabulary in schema newsml_1_2_xsd Drilldown into FormalName in schema newsml_1_2_xsd Drilldown into formalname in schema newsml_1_2_xsd Drilldown into Euid in schema newsml_1_2_xsd Drilldown into Duid in schema newsml_1_2_xsd Drilldown into localid in schema newsml_1_2_xsdXSD Diagram of Property in schema newsml_1_2_xsd (News Markup Language (NewsML))
Collapse XSD Schema Code:
<xs:element name="Property">
    <xs:annotation>
        <xs:documentation>
=================================== Property ===================================
A property of a NewsItem, NewsComponent, ContentItem, Topic, Location or Party. The property has a
name and either  a simple Value or a complex value consisting of a set of further properties.
The property has a name and either  a simple Value or a complex value consisting of a set of
further properties.

Value
=====
A string representation of the value of a Property.

ValueRef
========
A pointer to the value of the Property. This might be a Topic in a TopicSet, or
any other piece of data. If both Value and ValueRef are provided, then ValueRef
identifies the actual value of the property, with Value simply providing a
string representation or mnemonic for it.


AllowedValues
=============
The AllowedValues attribute, if present, is a pointer to a controlled vocabulary
that delimits the set of allowed values for the property. This may be an http
URL, or a NewsML URN, or a fragment identifier consisting of a # charactger
followed by the Duid of an element in the current document. The pointer must
reference either a Resource element that designates an external controlled
vocabulary, or a TopicSet element, that is itself the controlled vocabulary.

AllowedScheme (added in Version 1.1)
=============
The AllowedScheme attribute, if present, distinguishes the Scheme in a controlled
vocabulary that delimits the set of allowed values for the property. For a match to be
obtained within the controlled vocabulary both the AllowedScheme  must match the
Scheme in the vocabulary and the Value must match the FormalName in the vocabulary.
The use of the AllowedScheme attribute serves to indicate that the Value data is
 drawn from a controlled vocabulary rather that being an uncontrolled entry.
================================================================================

			</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="Property" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attributeGroup ref="localid" />
        <xs:attributeGroup ref="formalname" />
        <xs:attributeGroup ref="assignment" />
        <xs:attribute name="Value" type="xs:string" />
        <xs:attribute name="ValueRef" type="xs:string" />
        <xs:attribute name="AllowedValues" type="xs:string" />
        <xs:attribute name="AllowedScheme" type="xs:string" />
    </xs:complexType>
    <!--
Example:
<Catalog>
 <Resource Duid="resource1">
  <Urn>urn:newsml:reuters.com:20001001:Physical Characteristics:3</Urn>
  <Url>www.reuters.com/vocabs/physical.xml</Url>
  <Url>www.iptc.com/vocabularies/memberdefined/reuters/physical.xml</Url>
  <DefaultVocabularyFor Scheme="short" Context="Metadata/Property[@FormalName='Width']"/>
 </Resource>
</Catalog>
...
<Property FormalName="Width" Vocabulary="#resource1">
 <Property FormalName="Unit" ValueRef="urn:newsml:iptc.org:20001006:units:1#cm"/>
 <Property FormalName="Quantity" Value="7.5"/>
</Property>
-->
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Property Property 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
Duid Duid (Optional)
Euid Euid (Optional)
FormalName FormalName Required
Vocabulary Vocabulary (Optional)
Scheme Scheme (Optional)
AssignedBy AssignedBy (Optional)
Importance Importance (Optional)
Confidence Confidence (Optional)
HowPresent HowPresent (Optional)
DateAndTime DateAndTime (Optional)
Value Value (Optional)
ValueRef ValueRef (Optional)
AllowedValues AllowedValues (Optional)
AllowedScheme AllowedScheme (Optional)
