Definition Type: Element
Name: TopicSet
Containing Schema: NewsML_1.2.xsd
Abstract
Documentation:
================================== TopicSet ==================================== A container for Topics. The value of the FormalName attribute is a formal name for the TopicSet. Its meaning and permitted values are determined by a controlled vocabulary as described in the comment to the formalname ENTITY declaration above. ================================================================================

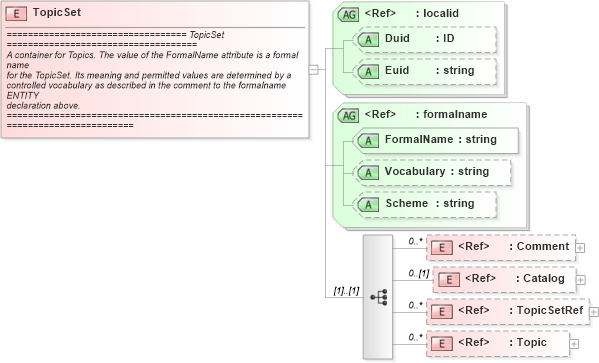

Collapse XSD Schema Diagram:
Drilldown into Topic in schema newsml_1_2_xsd Drilldown into TopicSetRef in schema newsml_1_2_xsd Drilldown into Catalog in schema newsml_1_2_xsd Drilldown into Comment in schema newsml_1_2_xsd Drilldown into Scheme in schema newsml_1_2_xsd Drilldown into Vocabulary in schema newsml_1_2_xsd Drilldown into FormalName in schema newsml_1_2_xsd Drilldown into formalname in schema newsml_1_2_xsd Drilldown into Euid in schema newsml_1_2_xsd Drilldown into Duid in schema newsml_1_2_xsd Drilldown into localid in schema newsml_1_2_xsdXSD Diagram of TopicSet in schema newsml_1_2_xsd (News Markup Language (NewsML))
Collapse XSD Schema Code:
<xs:element name="TopicSet">
    <xs:annotation>
        <xs:documentation>
================================== TopicSet ====================================
A container for Topics. The value of the FormalName attribute is a formal name
for the TopicSet. Its meaning and permitted values are determined by a
controlled vocabulary as described in the comment to the formalname ENTITY
declaration above.
================================================================================

			</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="Comment" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Catalog" minOccurs="0" />
            <xs:element ref="TopicSetRef" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Topic" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attributeGroup ref="localid" />
        <xs:attributeGroup ref="formalname" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Comment Comment 0 unbounded
Catalog Catalog 0 (1)
TopicSetRef TopicSetRef 0 unbounded
Topic Topic 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
Duid Duid (Optional)
Euid Euid (Optional)
FormalName FormalName Required
Vocabulary Vocabulary (Optional)
Scheme Scheme (Optional)
