Documentation for News Markup Language (NewsML) - Core
Definition Type: ComplexType
Name: QualPropType
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsB:QCodePropType
Containing Schema: NewsML-G2_2.23-spec-All-Core.xsd
Abstract
Documentation:
Type type for a property with a QCode value in a qcode attribute, a URI in a uri attribute and optional names

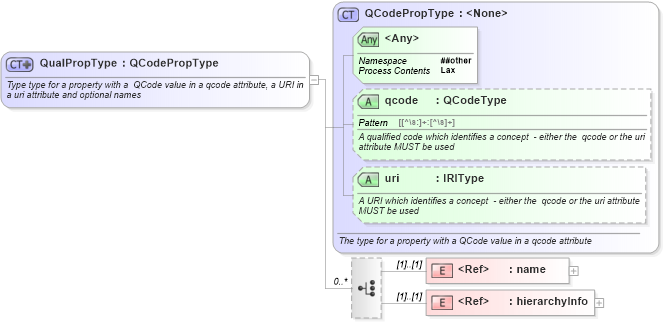

Collapse XSD Schema Diagram:
Drilldown into hierarchyInfo in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into name in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into uri in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into qcode in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into QCodePropType in schema newsml-g2_2_23-spec-all-core_xsdXSD Diagram of QualPropType in schema newsml-g2_2_23-spec-all-core_xsd (News Markup Language (NewsML) - Core)
Collapse XSD Schema Code:
<xs:complexType name="QualPropType">
    <xs:annotation>
        <xs:documentation>Type type for a property with a  QCode value in a qcode attribute, a URI in a uri attribute and optional names</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="QCodePropType">
            <xs:choice minOccurs="0" maxOccurs="unbounded">
                <!-- NAR1.1 rev3 : use newly defined global name -->
                <xs:element ref="name" />
                <xs:element ref="hierarchyInfo" />
            </xs:choice>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsB:name (1) (1)
hierarchyInfo nsB:hierarchyInfo (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
qcode nsB:qcode (Optional)
uri nsB:uri Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsB:accessStatus, nsB:action, nsB:occurStatus, nsB:pubStatus, nsB:role, nsB:service, nsB:typensB:TypedQualPropType,
