Documentation for News Markup Language (NewsML) - Core
Definition Type: ComplexType
Name: TypedQualPropType
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsB:QualPropType
Containing Schema: NewsML-G2_2.23-spec-All-Core.xsd
Abstract
Documentation:
The type for a property with a QCode, a type and optional names

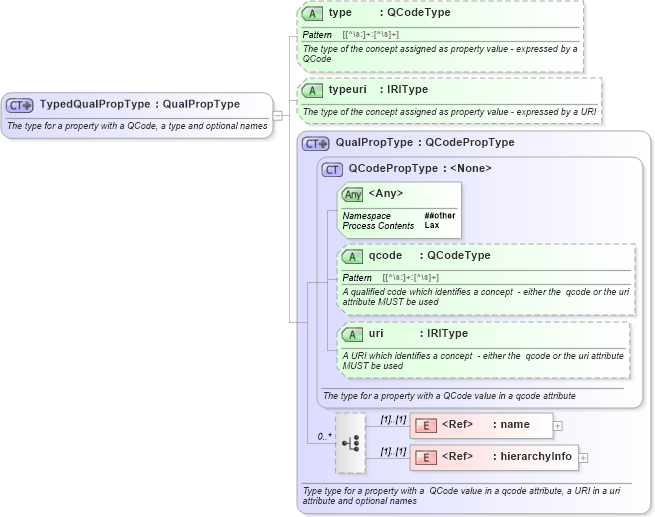

Collapse XSD Schema Diagram:
Drilldown into hierarchyInfo in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into name in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into uri in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into qcode in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into QCodePropType in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into QualPropType in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into typeuri in schema newsml-g2_2_23-spec-all-core_xsd Drilldown into type in schema newsml-g2_2_23-spec-all-core_xsdXSD Diagram of TypedQualPropType in schema newsml-g2_2_23-spec-all-core_xsd (News Markup Language (NewsML) - Core)
Collapse XSD Schema Code:
<xs:complexType name="TypedQualPropType">
    <xs:annotation>
        <xs:documentation>The type for a property with a QCode, a type and optional names</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="QualPropType">
            <xs:attribute name="type" type="QCodeType" use="optional">
                <xs:annotation>
                    <xs:documentation>The type of the concept assigned as property value - expressed by a QCode</xs:documentation>
                </xs:annotation>
            </xs:attribute>
            <xs:attribute name="typeuri" type="IRIType" use="optional">
                <xs:annotation>
                    <xs:documentation>The type of the concept assigned as property value - expressed by a URI</xs:documentation>
                </xs:annotation>
            </xs:attribute>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsB:name (1) (1)
hierarchyInfo nsB:hierarchyInfo (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
qcode nsB:qcode (Optional)
uri nsB:uri Optional
type nsB:type Optional
typeuri nsB:typeuri Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
