<xsd:element name="patch_item" substitutionGroup="system_characteristics:item">
<xsd:annotation>
<xsd:documentation>From /usr/sbin/swlist -l patch PHxx_yyyyy. See swlist manpage for specific fields</xsd:documentation>
<xsd:appinfo>
<item_name>Patch Item</item_name>
<extends>itemType</extends>
<valid_sections>message, object, data</valid_sections>
<example>
</example>
</xsd:appinfo>
</xsd:annotation>
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="system_characteristics:itemType">
<xsd:sequence>
<xsd:element name="object" minOccurs="1" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="system_characteristics:objectType">
<xsd:sequence>
<xsd:element name="area_patched" type="system_characteristics:objectStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>The first four characters in HP-UX patch names indicate the area of software being patched. PHCO = General HP-UX commands. PHKL = Kernel patches. PHNE = Network specific patches. PHSS = All other subsystems (X11, starbase, etc.).</xsd:documentation>
<xsd:appinfo>
<parent_item>patch_item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="patch_number" type="system_characteristics:objectIntType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>The sixth through tenth characters in HP-UX patch names represent a unique numeric identifier for the patch.</xsd:documentation>
<xsd:appinfo>
<parent_item>patch_item</parent_item>
<cardinality>1</cardinality>
<content>integer</content>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|

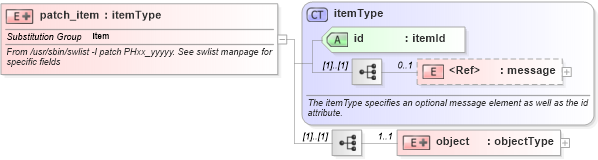

XSD Schema Diagram:
