Documentation for OASIS Security Services (SAML) TC
Definition Type: ComplexType
Name: RequestAbstractType
Namespace: urn:oasis:names:tc:SAML:1.0:protocol
Containing Schema: oasis-sstc-saml-schema-protocol-1.0.xsd
Abstract True

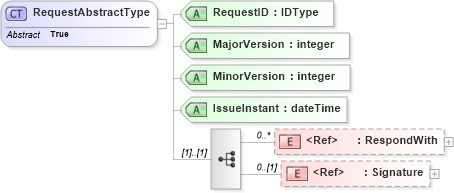

Collapse XSD Schema Diagram:
Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into RespondWith in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into IssueInstant in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into MinorVersion in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into MajorVersion in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into RequestID in schema oasis-sstc-saml-schema-protocol-1_0_xsdXSD Diagram of RequestAbstractType in schema oasis-sstc-saml-schema-protocol-1_0_xsd (OASIS Security Services (SAML) TC)
Collapse XSD Schema Code:
<complexType name="RequestAbstractType" abstract="true">
    <sequence>
        <element ref="samlp:RespondWith" minOccurs="0" maxOccurs="unbounded" />
        <element ref="ds:Signature" minOccurs="0" />
    </sequence>
    <attribute name="RequestID" type="saml:IDType" use="required" />
    <attribute name="MajorVersion" type="integer" use="required" />
    <attribute name="MinorVersion" type="integer" use="required" />
    <attribute name="IssueInstant" type="dateTime" use="required" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RespondWith samlp:RespondWith 0 unbounded
Signature ds:Signature 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
RequestID samlp:RequestID Required
MajorVersion samlp:MajorVersion Required
MinorVersion samlp:MinorVersion Required
IssueInstant samlp:IssueInstant Required
Collapse Derivation Tree:
Collapse References:
samlp:RequestType
