Docs for schema item RequestType in OASIS Security Services (SAML) TC

Documentation for OASIS Security Services (SAML) TC

Definition Type:	ComplexType
Name:	RequestType
Namespace:	urn:oasis:names:tc:SAML:1.0:protocol
Type:	samlp:RequestAbstractType
Containing Schema:	oasis-sstc-saml-schema-protocol-1.0.xsd
Abstract

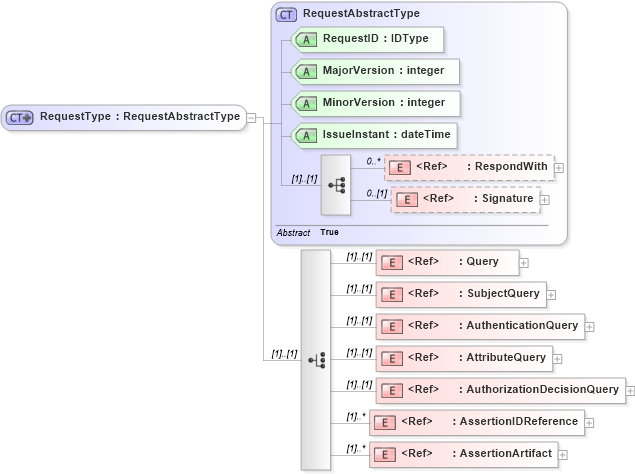

XSD Schema Diagram:

XSD Diagram of RequestType in schema oasis-sstc-saml-schema-protocol-1_0_xsd (OASIS Security Services (SAML) TC)

XSD Schema Code:

<complexType name="RequestType">
    <complexContent>
        <extension base="samlp:RequestAbstractType">
            <choice>
                <element ref="samlp:Query" />
                <element ref="samlp:SubjectQuery" />
                <element ref="samlp:AuthenticationQuery" />
                <element ref="samlp:AttributeQuery" />
                <element ref="samlp:AuthorizationDecisionQuery" />
                <element ref="saml:AssertionIDReference" maxOccurs="unbounded" />
                <element ref="samlp:AssertionArtifact" maxOccurs="unbounded" />
            </choice>
        </extension>
    </complexContent>
</complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
RespondWith	samlp:RespondWith	0	unbounded
Signature	ds:Signature	0	(1)
Query	samlp:Query	(1)	(1)
SubjectQuery	samlp:SubjectQuery	(1)	(1)
AuthenticationQuery	samlp:AuthenticationQuery	(1)	(1)
AttributeQuery	samlp:AttributeQuery	(1)	(1)
AuthorizationDecisionQuery	samlp:AuthorizationDecisionQuery	(1)	(1)
AssertionIDReference	saml:AssertionIDReference	(1)	unbounded
AssertionArtifact	samlp:AssertionArtifact	(1)	unbounded

Child Attributes:

Name	Type	Default Value	Use
RequestID	samlp:RequestID		Required
MajorVersion	samlp:MajorVersion		Required
MinorVersion	samlp:MinorVersion		Required
IssueInstant	samlp:IssueInstant		Required

Derivation Tree:
	samlp:RequestAbstractType *RequestType* samlp:Request

References:
	samlp:Request
