Documentation for OASIS Web Services Business Process Execution Language (WSBPEL) TC
Definition Type: Element
Name: forEach
Namespace: http://docs.oasis-open.org/wsbpel/2.0/process/abstract
Type: xsd-derived:tForEach
Containing Schema: ws-bpel_abstract_common_base.xsd
Abstract

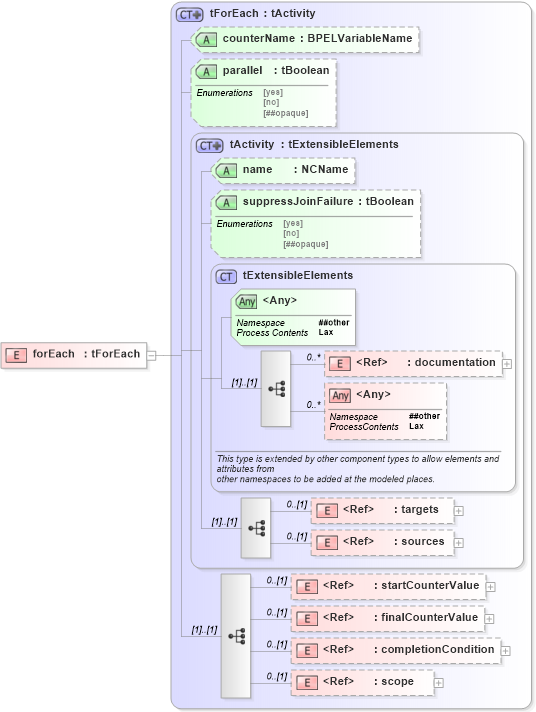

Collapse XSD Schema Diagram:
Drilldown into scope in schema ws-bpel_abstract_common_base_xsd Drilldown into completionCondition in schema ws-bpel_abstract_common_base_xsd Drilldown into finalCounterValue in schema ws-bpel_abstract_common_base_xsd Drilldown into startCounterValue in schema ws-bpel_abstract_common_base_xsd Drilldown into sources in schema ws-bpel_abstract_common_base_xsd Drilldown into targets in schema ws-bpel_abstract_common_base_xsd Drilldown into documentation in schema ws-bpel_abstract_common_base_xsd Drilldown into tExtensibleElements in schema ws-bpel_abstract_common_base_xsd Drilldown into suppressJoinFailure in schema ws-bpel_abstract_common_base_xsd Drilldown into name in schema ws-bpel_abstract_common_base_xsd Drilldown into tActivity in schema ws-bpel_abstract_common_base_xsd Drilldown into parallel in schema ws-bpel_abstract_common_base_xsd Drilldown into counterName in schema ws-bpel_abstract_common_base_xsd Drilldown into tForEach in schema ws-bpel_abstract_common_base_xsdXSD Diagram of forEach in schema ws-bpel_abstract_common_base_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:element name="forEach" type="tForEach" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation xsd-derived:documentation 0 unbounded
targets xsd-derived:targets 0 (1)
sources xsd-derived:sources 0 (1)
startCounterValue xsd-derived:startCounterValue 0 (1)
finalCounterValue xsd-derived:finalCounterValue 0 (1)
completionCondition xsd-derived:completionCondition 0 (1)
scope xsd-derived:scope 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
name xsd-derived:name (Optional)
suppressJoinFailure xsd-derived:suppressJoinFailure Optional
counterName xsd-derived:counterName Optional
parallel xsd-derived:parallel Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
