Definition Type: ComplexType
Name: tActivity
Namespace: http://docs.oasis-open.org/wsbpel/2.0/process/abstract
Type: xsd-derived:tExtensibleElements
Containing Schema: ws-bpel_abstract_common_base.xsd
Abstract

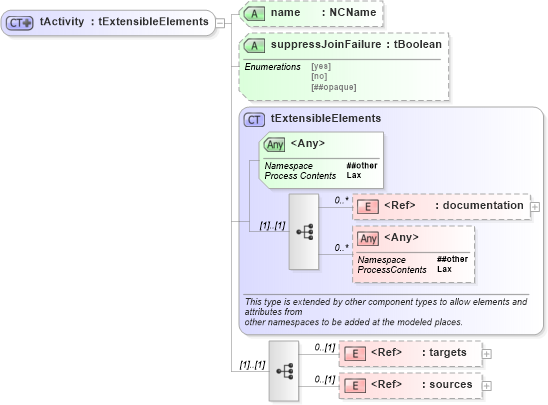

Collapse XSD Schema Diagram:
Drilldown into sources in schema ws-bpel_abstract_common_base_xsd Drilldown into targets in schema ws-bpel_abstract_common_base_xsd Drilldown into documentation in schema ws-bpel_abstract_common_base_xsd Drilldown into tExtensibleElements in schema ws-bpel_abstract_common_base_xsd Drilldown into suppressJoinFailure in schema ws-bpel_abstract_common_base_xsd Drilldown into name in schema ws-bpel_abstract_common_base_xsdXSD Diagram of tActivity in schema ws-bpel_abstract_common_base_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="tActivity">
    <xsd:complexContent>
        <xsd:extension base="tExtensibleElements">
            <xsd:sequence>
                <xsd:element ref="targets" minOccurs="0" />
                <xsd:element ref="sources" minOccurs="0" />
            </xsd:sequence>
            <xsd:attribute name="name" type="xsd-derived:NCName" />
            <xsd:attribute name="suppressJoinFailure" type="tBoolean" use="optional" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation xsd-derived:documentation 0 unbounded
targets xsd-derived:targets 0 (1)
sources xsd-derived:sources 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
name xsd-derived:name (Optional)
suppressJoinFailure xsd-derived:suppressJoinFailure Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
xsd-derived:tAssign, xsd-derived:tCompensate, xsd-derived:tCompensateScope, xsd-derived:tEmpty, xsd-derived:tExit, xsd-derived:tFlow, xsd-derived:tForEach, xsd-derived:tIf, xsd-derived:tInvoke, xsd-derived:tOpaqueActivity, xsd-derived:tPick, xsd-derived:tReceive, xsd-derived:tRepeatUntil, xsd-derived:tReply, xsd-derived:tRethrow, xsd-derived:tScope, xsd-derived:tSequence, xsd-derived:tThrow, xsd-derived:tValidate, xsd-derived:tWait, xsd-derived:tWhile
