Definition Type: ComplexType
Name: tPick
Namespace: http://docs.oasis-open.org/wsbpel/2.0/process/abstract
Type: xsd-derived:tActivity
Containing Schema: ws-bpel_abstract_common_base.xsd
Abstract
Documentation:
XSD Authors: The child element onAlarm needs to be a Local Element Declaration, because there is another onAlarm element defined for event handlers.

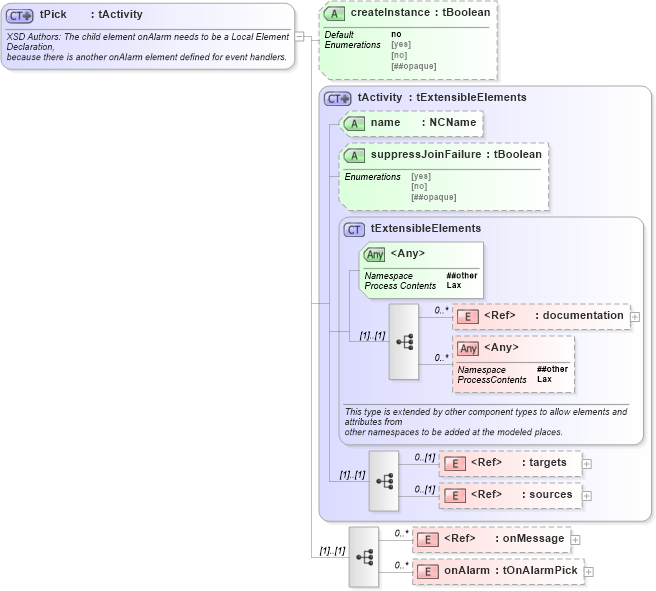

Collapse XSD Schema Diagram:
Drilldown into onAlarm in schema ws-bpel_abstract_common_base_xsd Drilldown into onMessage in schema ws-bpel_abstract_common_base_xsd Drilldown into sources in schema ws-bpel_abstract_common_base_xsd Drilldown into targets in schema ws-bpel_abstract_common_base_xsd Drilldown into documentation in schema ws-bpel_abstract_common_base_xsd Drilldown into tExtensibleElements in schema ws-bpel_abstract_common_base_xsd Drilldown into suppressJoinFailure in schema ws-bpel_abstract_common_base_xsd Drilldown into name in schema ws-bpel_abstract_common_base_xsd Drilldown into tActivity in schema ws-bpel_abstract_common_base_xsd Drilldown into createInstance in schema ws-bpel_abstract_common_base_xsdXSD Diagram of tPick in schema ws-bpel_abstract_common_base_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="tPick">
    <xsd:annotation>
        <xsd:documentation>
				XSD Authors: The child element onAlarm needs to be a Local Element Declaration,
				because there is another onAlarm element defined for event handlers.
			</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="tActivity">
            <xsd:sequence>
                <xsd:element ref="onMessage" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="onAlarm" type="tOnAlarmPick" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
            <xsd:attribute name="createInstance" type="tBoolean" default="no" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation xsd-derived:documentation 0 unbounded
targets xsd-derived:targets 0 (1)
sources xsd-derived:sources 0 (1)
onMessage xsd-derived:onMessage 0 unbounded
onAlarm xsd-derived:onAlarm 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
name xsd-derived:name (Optional)
suppressJoinFailure xsd-derived:suppressJoinFailure Optional
createInstance xsd-derived:createInstance no (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
xsd-derived:pick
