Definition Type: Element
Name: forEach
Namespace: http://docs.oasis-open.org/wsbpel/2.0/process/executable
Type: nsB:tForEach
Containing Schema: ws-bpel_executable.xsd
Abstract

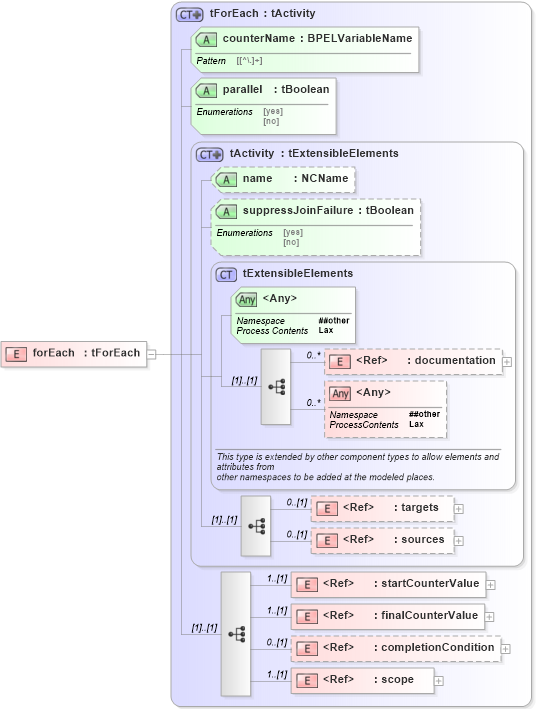

Collapse XSD Schema Diagram:
Drilldown into scope in schema ws-bpel_executable_xsd Drilldown into completionCondition in schema ws-bpel_executable_xsd Drilldown into finalCounterValue in schema ws-bpel_executable_xsd Drilldown into startCounterValue in schema ws-bpel_executable_xsd Drilldown into sources in schema ws-bpel_executable_xsd Drilldown into targets in schema ws-bpel_executable_xsd Drilldown into documentation in schema ws-bpel_executable_xsd Drilldown into tExtensibleElements in schema ws-bpel_executable_xsd Drilldown into suppressJoinFailure in schema ws-bpel_executable_xsd Drilldown into name in schema ws-bpel_executable_xsd Drilldown into tActivity in schema ws-bpel_executable_xsd Drilldown into parallel in schema ws-bpel_executable_xsd Drilldown into counterName in schema ws-bpel_executable_xsd Drilldown into tForEach in schema ws-bpel_executable_xsdXSD Diagram of forEach in schema ws-bpel_executable_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:element name="forEach" type="tForEach" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation nsB:documentation 0 unbounded
targets nsB:targets 0 (1)
sources nsB:sources 0 (1)
startCounterValue nsB:startCounterValue 1 (1)
finalCounterValue nsB:finalCounterValue 1 (1)
completionCondition nsB:completionCondition 0 (1)
scope nsB:scope 1 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
name nsB:name (Optional)
suppressJoinFailure nsB:suppressJoinFailure Optional
counterName nsB:counterName Required
parallel nsB:parallel Required
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
