Definition Type: ComplexType
Name: tActivity
Namespace: http://docs.oasis-open.org/wsbpel/2.0/process/executable
Type: nsB:tExtensibleElements
Containing Schema: ws-bpel_executable.xsd
Abstract

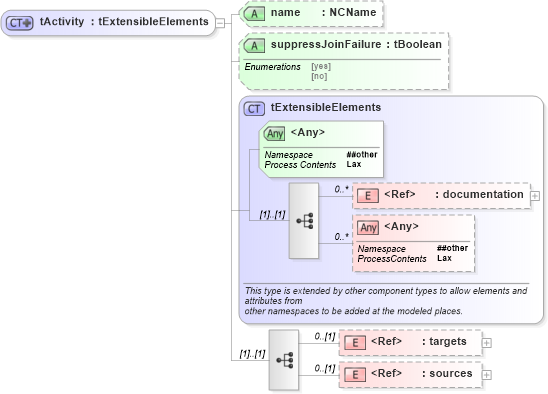

Collapse XSD Schema Diagram:
Drilldown into sources in schema ws-bpel_executable_xsd Drilldown into targets in schema ws-bpel_executable_xsd Drilldown into documentation in schema ws-bpel_executable_xsd Drilldown into tExtensibleElements in schema ws-bpel_executable_xsd Drilldown into suppressJoinFailure in schema ws-bpel_executable_xsd Drilldown into name in schema ws-bpel_executable_xsdXSD Diagram of tActivity in schema ws-bpel_executable_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="tActivity">
    <xsd:complexContent>
        <xsd:extension base="tExtensibleElements">
            <xsd:sequence>
                <xsd:element ref="targets" minOccurs="0" />
                <xsd:element ref="sources" minOccurs="0" />
            </xsd:sequence>
            <xsd:attribute name="name" type="xsd:NCName" />
            <xsd:attribute name="suppressJoinFailure" type="tBoolean" use="optional" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation nsB:documentation 0 unbounded
targets nsB:targets 0 (1)
sources nsB:sources 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
name nsB:name (Optional)
suppressJoinFailure nsB:suppressJoinFailure Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsB:tAssign, nsB:tCompensate, nsB:tCompensateScope, nsB:tEmpty, nsB:tExit, nsB:tFlow, nsB:tForEach, nsB:tIf, nsB:tInvoke, nsB:tPick, nsB:tReceive, nsB:tRepeatUntil, nsB:tReply, nsB:tRethrow, nsB:tScope, nsB:tSequence, nsB:tThrow, nsB:tValidate, nsB:tWait, nsB:tWhile
