Definition Type: ComplexType
Name: tPick
Namespace: http://docs.oasis-open.org/wsbpel/2.0/process/executable
Type: nsB:tActivity
Containing Schema: ws-bpel_executable.xsd
Abstract
Documentation:
XSD Authors: The child element onAlarm needs to be a Local Element Declaration, because there is another onAlarm element defined for event handlers.
Collapse XSD Schema Diagram:

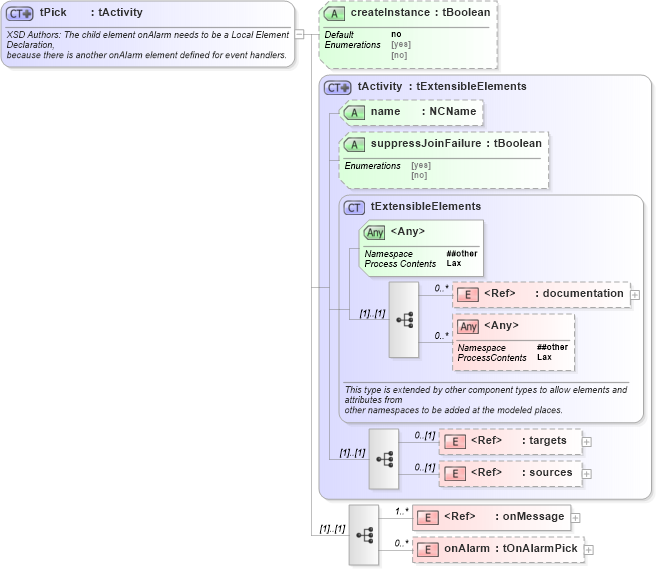

Drilldown into onAlarm in schema ws-bpel_executable_xsd Drilldown into onMessage in schema ws-bpel_executable_xsd Drilldown into sources in schema ws-bpel_executable_xsd Drilldown into targets in schema ws-bpel_executable_xsd Drilldown into documentation in schema ws-bpel_executable_xsd Drilldown into tExtensibleElements in schema ws-bpel_executable_xsd Drilldown into suppressJoinFailure in schema ws-bpel_executable_xsd Drilldown into name in schema ws-bpel_executable_xsd Drilldown into tActivity in schema ws-bpel_executable_xsd Drilldown into createInstance in schema ws-bpel_executable_xsdXSD Diagram of tPick in schema ws-bpel_executable_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="tPick">
    <xsd:annotation>
        <xsd:documentation>
				XSD Authors: The child element onAlarm needs to be a Local Element Declaration,
				because there is another onAlarm element defined for event handlers.
			</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="tActivity">
            <xsd:sequence>
                <xsd:element ref="onMessage" minOccurs="1" maxOccurs="unbounded" />
                <xsd:element name="onAlarm" type="tOnAlarmPick" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
            <xsd:attribute name="createInstance" type="tBoolean" default="no" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation nsB:documentation 0 unbounded
targets nsB:targets 0 (1)
sources nsB:sources 0 (1)
onMessage nsB:onMessage 1 unbounded
onAlarm nsB:onAlarm 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
name nsB:name (Optional)
suppressJoinFailure nsB:suppressJoinFailure Optional
createInstance nsB:createInstance no (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsB:pick
