Definition Type: Element
Name: onEvent
Namespace: http://docs.oasis-open.org/wsbpel/2.0/process/executable
Type: nsB:tOnEvent
Containing Schema: ws-bpel_executable.xsd
Abstract

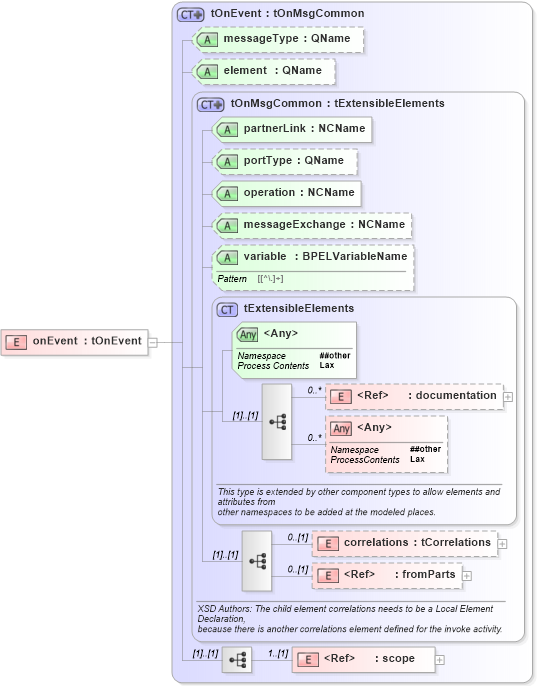

Collapse XSD Schema Diagram:
Drilldown into scope in schema ws-bpel_executable_xsd Drilldown into fromParts in schema ws-bpel_executable_xsd Drilldown into correlations in schema ws-bpel_executable_xsd Drilldown into documentation in schema ws-bpel_executable_xsd Drilldown into tExtensibleElements in schema ws-bpel_executable_xsd Drilldown into variable in schema ws-bpel_executable_xsd Drilldown into messageExchange in schema ws-bpel_executable_xsd Drilldown into operation in schema ws-bpel_executable_xsd Drilldown into portType in schema ws-bpel_executable_xsd Drilldown into partnerLink in schema ws-bpel_executable_xsd Drilldown into tOnMsgCommon in schema ws-bpel_executable_xsd Drilldown into element in schema ws-bpel_executable_xsd Drilldown into messageType in schema ws-bpel_executable_xsd Drilldown into tOnEvent in schema ws-bpel_executable_xsdXSD Diagram of onEvent in schema ws-bpel_executable_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:element name="onEvent" type="tOnEvent" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation nsB:documentation 0 unbounded
correlations nsB:correlations 0 (1)
fromParts nsB:fromParts 0 (1)
scope nsB:scope 1 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
partnerLink nsB:partnerLink Required
portType nsB:portType Optional
operation nsB:operation Required
messageExchange nsB:messageExchange Optional
variable nsB:variable Optional
messageType nsB:messageType Optional
element nsB:element Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
