Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: AddressType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract
Documentation:
ABIE Address. Details the particulars that identify and locate the place where someone lives or is situated, or where an organisation is situated. Address

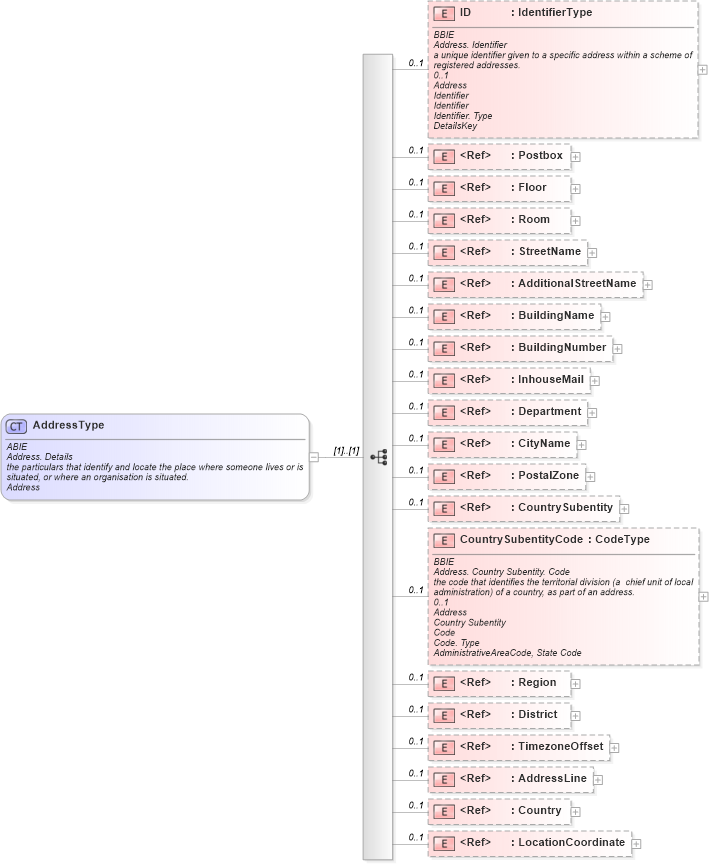

Collapse XSD Schema Diagram:
Drilldown into LocationCoordinate in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Country in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into AddressLine in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into TimezoneOffset in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into District in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into Region in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into CountrySubentityCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into CountrySubentity in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into PostalZone in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into CityName in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into Department in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into InhouseMail in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into BuildingNumber in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into BuildingName in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into AdditionalStreetName in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into StreetName in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into Room in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into Floor in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into Postbox in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into ID in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of AddressType in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="AddressType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Address. Details</ccts:DictionaryEntryName>
                <ccts:Definition>the particulars that identify and locate the place where someone lives or is situated, or where an organisation is situated.</ccts:Definition>
                <ccts:ObjectClass>Address</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="ID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>a unique identifier given to a specific address within a scheme of registered addresses.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>DetailsKey</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Postbox" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Postbox. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>a post office box number or a numbered post box in a post office assigned to a person or organization where letters for them are kept until called for, used as part of an address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Postbox</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>PostBox, PO Box</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"123"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Floor" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Floor. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>identification by name or number of the floor in a building, as part of an address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Floor</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>SubPremiseNumber</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"30"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Room" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Room. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>identifies the room, suite or apartment as part of an address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Room</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>SubPremiseNumber</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"Reception"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:StreetName" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Street Name. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>the name of the street, as part of an address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Street Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name_Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Thoroughfare</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"Kwun Tong Road"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:AdditionalStreetName" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Additional_ Street Name. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>contains additional text information within an address about the street.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Additional</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Street Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name_Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Thoroughfare</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"Cnr Aberdeen Road"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:BuildingName" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Building Name. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>the name that identifies the location of a house or building: usually within a street as part of an address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Building Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name_Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>BuildingName</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"Plot 421"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:BuildingNumber" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Building Number. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>the house number or description that identifies a house, building or site: usually within a street as part of an address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Building Number</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>PremiseNumber</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"388"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:InhouseMail" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Inhouse_ Mail. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>identifies an in-house mail location as part of an address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Inhouse</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Mail</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>MailStop</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Department" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Department. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>the identity of the department of an organisation, used as part of an address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Department</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Department</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"Accounts Payable"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CityName" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. City Name. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>the name of the city, town, village, or a built up area and used as part of an address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>City Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name_Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>LocalityName</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"Hong Kong"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PostalZone" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Postal_ Zone. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>the identifier for one or more properties according to the postal service of that country; a group of letters and/or numbers added to the postal address to assist in the sorting of mail.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Postal</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Zone</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>PostalCodeNumber</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"SW11 4EW" "2500 GG"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CountrySubentity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Country Subentity. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>the name that identifies the territorial division (a  chief unit of local administration) of a country, as part of an address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Country Subentity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>AdministrativeArea, State, Country, Shire, Canton</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"Florida","Tamilnadu"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="CountrySubentityCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Country Subentity. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>the code that identifies the territorial division (a  chief unit of local administration) of a country, as part of an address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Country Subentity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>AdministrativeAreaCode, State Code</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Region" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Region. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>An address line of unstructured text intended for use only by systems incapsed name for a grouping of countries, as part of an address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Region</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>LocalityName, Economic Zone</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"European Union"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:District" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. District. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>the name that identifies a non-administrative division of a city, country subentity, or country, as part of an address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>District</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>LocalityName, Area</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"East Coast"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:TimezoneOffset" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Timezone Offset. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>the measure of time offset from UTC (Universal Coordinated Time) for the time zone in which the address is situated. A synonym for UTC is GMT (Greenwich Mean Time).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Timezone Offset</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:Examples>"+8:00" "-3:00"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AddressLine" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Address Line</ccts:DictionaryEntryName>
                        <ccts:Definition>Associates the address with lines of unstructured text</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Address Line</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Address Line</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Country" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Country</ccts:DictionaryEntryName>
                        <ccts:Definition>provides the country part of an address using a code.  ISO3166 alpha codes are recommended.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Country</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Country</ccts:AssociatedObjectClass>
                        <ccts:AlternativeBusinessTerms>Country</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="LocationCoordinate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Location Coordinate</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the address with its location coordinates.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Location Coordinate</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Location Coordinate</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cac:ID 0 1
Postbox cbc:Postbox 0 1
Floor cbc:Floor 0 1
Room cbc:Room 0 1
StreetName cbc:StreetName 0 1
AdditionalStreetName cbc:AdditionalStreetName 0 1
BuildingName cbc:BuildingName 0 1
BuildingNumber cbc:BuildingNumber 0 1
InhouseMail cbc:InhouseMail 0 1
Department cbc:Department 0 1
CityName cbc:CityName 0 1
PostalZone cbc:PostalZone 0 1
CountrySubentity cbc:CountrySubentity 0 1
CountrySubentityCode cac:CountrySubentityCode 0 1
Region cbc:Region 0 1
District cbc:District 0 1
TimezoneOffset cbc:TimezoneOffset 0 1
AddressLine cac:AddressLine 0 1
Country cac:Country 0 1
LocationCoordinate cac:LocationCoordinate 0 1
Collapse Derivation Tree:
Collapse References:
cac:Address, cac:DeliveryAddress, cac:DespatchAddress, cac:JurisdictionAddress, cac:RegistrationAddress
Documentation for OASIS Universal Business Language (UBL) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
