Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: DeliveryAddress
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Type: cac:AddressType
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract

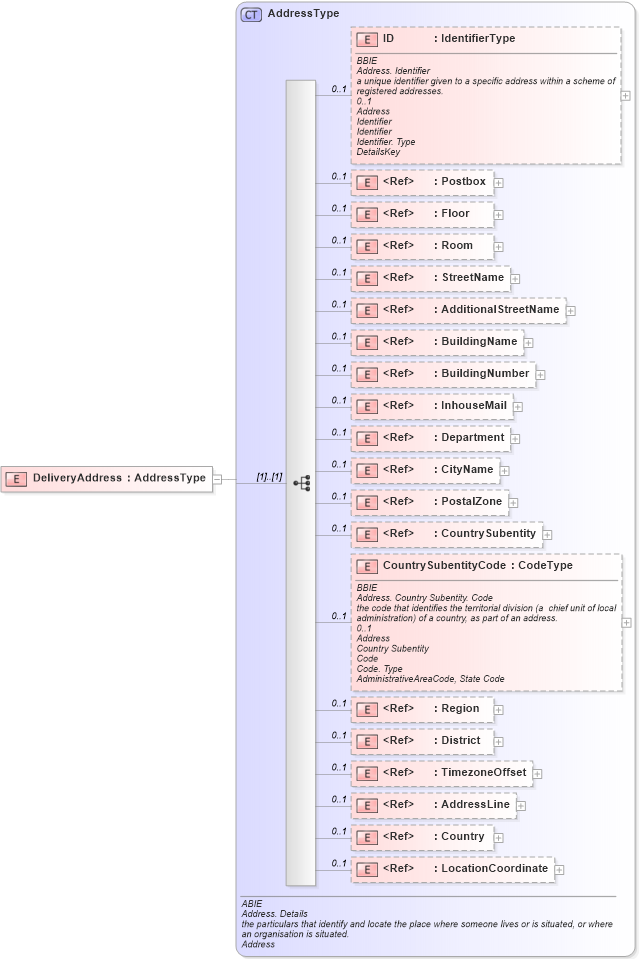

Collapse XSD Schema Diagram:
Drilldown into LocationCoordinate in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Country in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into AddressLine in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into TimezoneOffset in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into District in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into Region in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into CountrySubentityCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into CountrySubentity in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into PostalZone in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into CityName in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into Department in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into InhouseMail in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into BuildingNumber in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into BuildingName in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into AdditionalStreetName in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into StreetName in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into Room in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into Floor in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into Postbox in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into ID in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into AddressType in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of DeliveryAddress in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="DeliveryAddress" type="AddressType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cac:ID 0 1
Postbox cbc:Postbox 0 1
Floor cbc:Floor 0 1
Room cbc:Room 0 1
StreetName cbc:StreetName 0 1
AdditionalStreetName cbc:AdditionalStreetName 0 1
BuildingName cbc:BuildingName 0 1
BuildingNumber cbc:BuildingNumber 0 1
InhouseMail cbc:InhouseMail 0 1
Department cbc:Department 0 1
CityName cbc:CityName 0 1
PostalZone cbc:PostalZone 0 1
CountrySubentity cbc:CountrySubentity 0 1
CountrySubentityCode cac:CountrySubentityCode 0 1
Region cbc:Region 0 1
District cbc:District 0 1
TimezoneOffset cbc:TimezoneOffset 0 1
AddressLine cac:AddressLine 0 1
Country cac:Country 0 1
LocationCoordinate cac:LocationCoordinate 0 1
Collapse Derivation Tree:
