Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: CardAccountType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract
Documentation:
ABIE Card Account. Details information that directly relates to a credit or debit card, a small plastic card issued by a financial institution, bank or building society, allowing the holder to make purchases against the card. Card Account

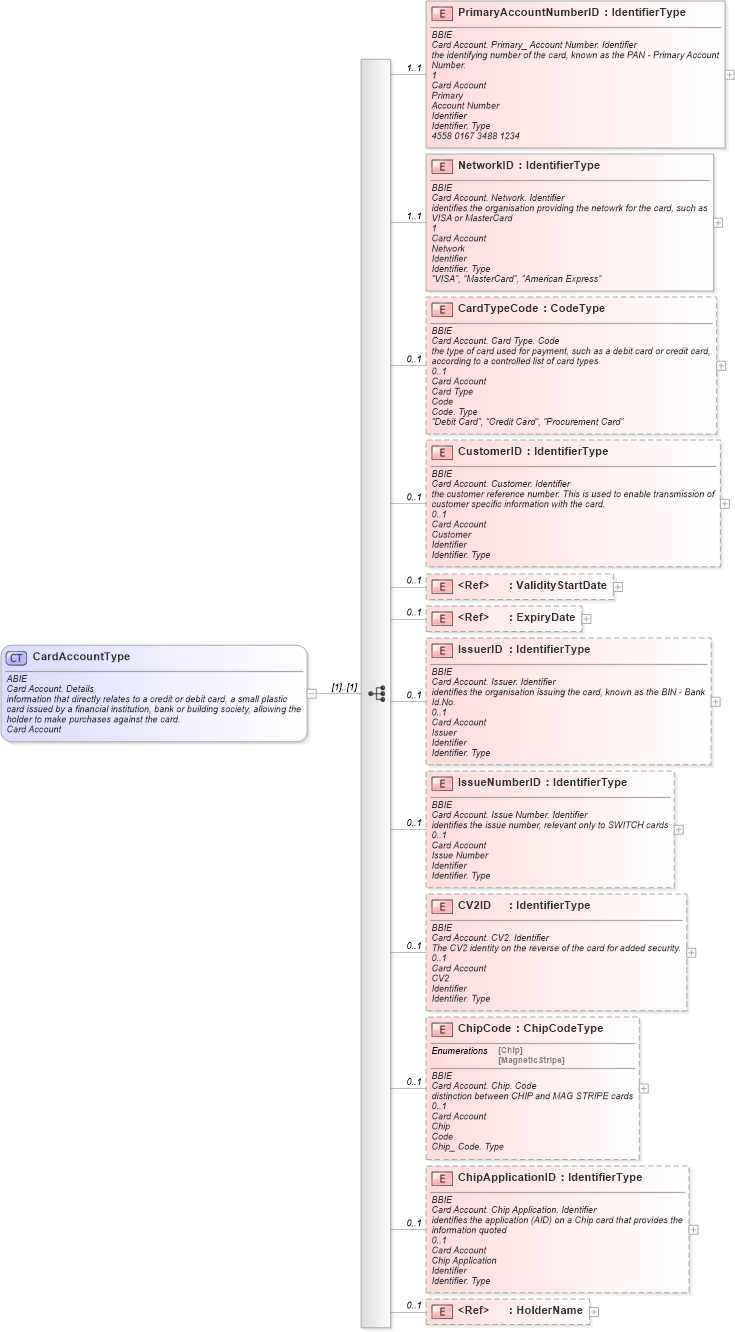

Collapse XSD Schema Diagram:
Drilldown into HolderName in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into ChipApplicationID in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into ChipCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into CV2ID in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into IssueNumberID in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into IssuerID in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into ExpiryDate in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into ValidityStartDate in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into CustomerID in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into CardTypeCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into NetworkID in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into PrimaryAccountNumberID in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of CardAccountType in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="CardAccountType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Card Account. Details</ccts:DictionaryEntryName>
                <ccts:Definition>information that directly relates to a credit or debit card, a small plastic card issued by a financial institution, bank or building society, allowing the holder to make purchases against the card.</ccts:Definition>
                <ccts:ObjectClass>Card Account</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="PrimaryAccountNumberID" type="udt:IdentifierType" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Primary_ Account Number. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>the identifying number of the card, known as the PAN - Primary Account Number.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Primary</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Account Number</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>4558 0167 3488 1234</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="NetworkID" type="udt:IdentifierType" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Network. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>identifies the organisation providing the netowrk for the card, such as VISA or MasterCard</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Network</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>“VISA”, “MasterCard”, “American Express”</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="CardTypeCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Card Type. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>the type of card used for payment, such as a debit card or credit card, according to a controlled list of card types</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Card Type</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:Examples>“Debit Card”, “Credit Card”, “Procurement Card”</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="CustomerID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Customer. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>the customer reference number. This is used to enable transmission of customer specific information with the card.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Customer</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ValidityStartDate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Validity Start Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>the date from which the card is valid .</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Validity Start Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date_Date Time. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ExpiryDate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Expiry Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>the date up to which the card is valid .</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Expiry Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date_Date Time. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="IssuerID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Issuer. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>identifies the organisation issuing the card, known as the BIN - Bank Id.No.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Issuer</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="IssueNumberID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Issue Number. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>identifies the issue number, relevant only to SWITCH cards</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Issue Number</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="CV2ID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. CV2. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The CV2 identity on the reverse of the card for added security.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>CV2</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ChipCode" type="chc:ChipCodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Chip. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>distinction between CHIP and MAG STRIPE cards</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Chip</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Chip_ Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ChipApplicationID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Chip Application. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>identifies the application (AID) on a Chip card that provides the information quoted</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Chip Application</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:HolderName" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Holder. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>the name of the holder of the card.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Holder</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name_Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PrimaryAccountNumberID cac:PrimaryAccountNumberID 1 1
NetworkID cac:NetworkID 1 1
CardTypeCode cac:CardTypeCode 0 1
CustomerID cac:CustomerID 0 1
ValidityStartDate cbc:ValidityStartDate 0 1
ExpiryDate cbc:ExpiryDate 0 1
IssuerID cac:IssuerID 0 1
IssueNumberID cac:IssueNumberID 0 1
CV2ID cac:CV2ID 0 1
ChipCode cac:ChipCode 0 1
ChipApplicationID cac:ChipApplicationID 0 1
HolderName cbc:HolderName 0 1
Collapse Derivation Tree:
Collapse References:
cac:CardAccount
