Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: CurrencyCodeType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CurrencyCode-1.0
Type: cur:CurrencyCodeContentType
Containing Schema: UBL-CodeList-CurrencyCode-1.0.xsd
Abstract
Documentation:
DT Currency_ Code. Type Code Currency Code. Type ISO 4217 Alpha 6 United Nations Economic Commission for Europe Currency 0.3 http://www.bsi-global.com/Technical%2BInformation/Publications/_Publications/tig90x.doc urn:oasis:names:specification:ubl:schema:xsd:CurrencyCode-1.0 en

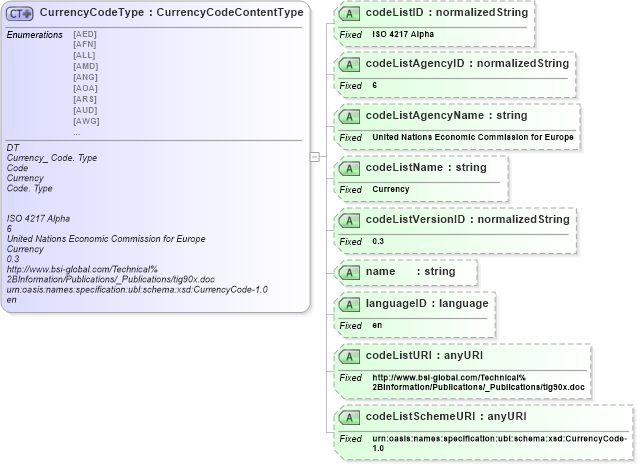

Collapse XSD Schema Diagram:
Drilldown into codeListSchemeURI in schema ubl-codelist-currencycode-1_0_xsd Drilldown into codeListURI in schema ubl-codelist-currencycode-1_0_xsd Drilldown into languageID in schema ubl-codelist-currencycode-1_0_xsd Drilldown into name in schema ubl-codelist-currencycode-1_0_xsd Drilldown into codeListVersionID in schema ubl-codelist-currencycode-1_0_xsd Drilldown into codeListName in schema ubl-codelist-currencycode-1_0_xsd Drilldown into codeListAgencyName in schema ubl-codelist-currencycode-1_0_xsd Drilldown into codeListAgencyID in schema ubl-codelist-currencycode-1_0_xsd Drilldown into codeListID in schema ubl-codelist-currencycode-1_0_xsdXSD Diagram of CurrencyCodeType in schema ubl-codelist-currencycode-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="CurrencyCodeType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>DT</ccts:ComponentType>
                <ccts:DictionaryEntryName>Currency_ Code. Type</ccts:DictionaryEntryName>
                <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                <ccts:DataTypeQualifier>Currency</ccts:DataTypeQualifier>
                <ccts:DataType>Code. Type</ccts:DataType>
            </ccts:Component>
            <ccts:Instance xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:CodeListID>ISO 4217 Alpha</ccts:CodeListID>
                <ccts:CodeListAgencyID>6</ccts:CodeListAgencyID>
                <ccts:CodeListAgencyName>United Nations Economic Commission for Europe</ccts:CodeListAgencyName>
                <ccts:CodeListName>Currency</ccts:CodeListName>
                <ccts:CodeListVersionID>0.3</ccts:CodeListVersionID>
                <ccts:CodeListURI>http://www.bsi-global.com/Technical%2BInformation/Publications/_Publications/tig90x.doc</ccts:CodeListURI>
                <ccts:CodeListSchemeURI>urn:oasis:names:specification:ubl:schema:xsd:CurrencyCode-1.0</ccts:CodeListSchemeURI>
                <ccts:LanguageID>en</ccts:LanguageID>
            </ccts:Instance>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:extension base="CurrencyCodeContentType">
            <xsd:attribute name="codeListID" type="xsd:normalizedString" fixed="ISO 4217 Alpha" use="optional" />
            <xsd:attribute name="codeListAgencyID" type="xsd:normalizedString" fixed="6" use="optional" />
            <xsd:attribute name="codeListAgencyName" type="xsd:string" fixed="United Nations Economic Commission for Europe" use="optional" />
            <xsd:attribute name="codeListName" type="xsd:string" fixed="Currency" use="optional" />
            <xsd:attribute name="codeListVersionID" type="xsd:normalizedString" fixed="0.3" use="optional" />
            <xsd:attribute name="name" type="xsd:string" use="optional" />
            <xsd:attribute name="languageID" type="xsd:language" fixed="en" use="optional" />
            <xsd:attribute name="codeListURI" type="xsd:anyURI" fixed="http://www.bsi-global.com/Technical%2BInformation/Publications/_Publications/tig90x.doc" use="optional" />
            <xsd:attribute name="codeListSchemeURI" type="xsd:anyURI" fixed="urn:oasis:names:specification:ubl:schema:xsd:CurrencyCode-1.0" use="optional" />
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
codeListID cur:codeListID Optional
codeListAgencyID cur:codeListAgencyID Optional
codeListAgencyName cur:codeListAgencyName Optional
codeListName cur:codeListName Optional
codeListVersionID cur:codeListVersionID Optional
name cur:name Optional
languageID cur:languageID Optional
codeListURI cur:codeListURI Optional
codeListSchemeURI cur:codeListSchemeURI Optional
Collapse Derivation Tree:
Collapse References:
cac:CurrencyCode, cac:CurrencyCode, cac:CurrencyCode, nsB:InvoiceCurrencyCode, nsB:PricingCurrencyCode, nsC:PricingCurrencyCode, nsE:PricingCurrencyCode, nsF:PricingCurrencyCode, cac:SourceCurrencyCode, cac:TargetCurrencyCode, nsB:TaxCurrencyCode, nsC:TransactionCurrencyCode, nsE:TransactionCurrencyCode, nsF:TransactionCurrencyCode
