Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: TransactionCurrencyCode
Namespace: urn:oasis:names:specification:ubl:schema:xsd:Order-1.0
Type: cur:CurrencyCodeType
Containing Schema: UBL-Order-1.0.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
BBIE Order. Transaction Currency. Code the default currency of the transaction, to be used for Invoicing. 0..1 Order Transaction Currency Code Currency_ Code. Type

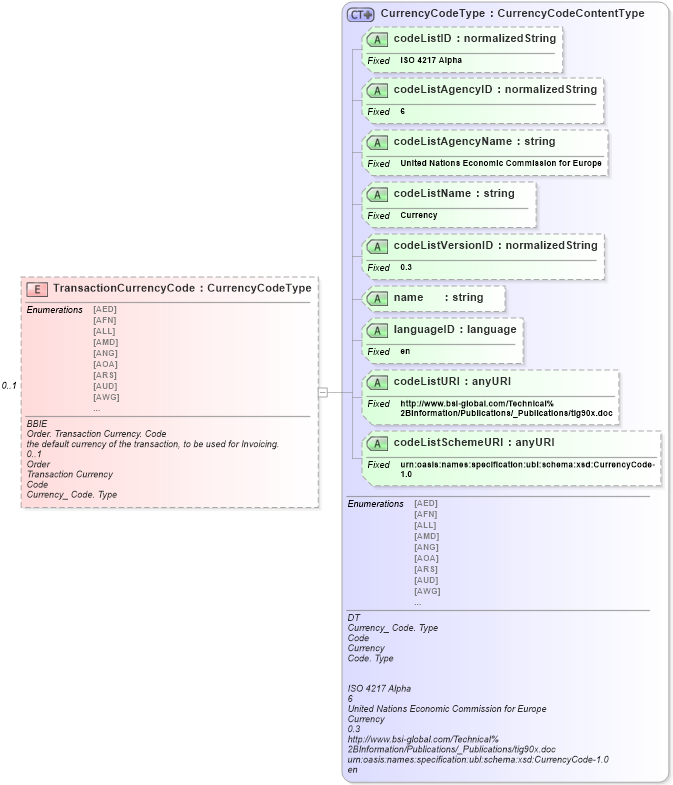

Collapse XSD Schema Diagram:
Drilldown into codeListSchemeURI in schema ubl-codelist-currencycode-1_0_xsd Drilldown into codeListURI in schema ubl-codelist-currencycode-1_0_xsd Drilldown into languageID in schema ubl-codelist-currencycode-1_0_xsd Drilldown into name in schema ubl-codelist-currencycode-1_0_xsd Drilldown into codeListVersionID in schema ubl-codelist-currencycode-1_0_xsd Drilldown into codeListName in schema ubl-codelist-currencycode-1_0_xsd Drilldown into codeListAgencyName in schema ubl-codelist-currencycode-1_0_xsd Drilldown into codeListAgencyID in schema ubl-codelist-currencycode-1_0_xsd Drilldown into codeListID in schema ubl-codelist-currencycode-1_0_xsd Drilldown into CurrencyCodeType in schema ubl-codelist-currencycode-1_0_xsdXSD Diagram of TransactionCurrencyCode in schema ubl-order-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="TransactionCurrencyCode" type="cur:CurrencyCodeType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>BBIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Order. Transaction Currency. Code</ccts:DictionaryEntryName>
                <ccts:Definition>the default currency of the transaction, to be used for Invoicing.</ccts:Definition>
                <ccts:Cardinality>0..1</ccts:Cardinality>
                <ccts:ObjectClass>Order</ccts:ObjectClass>
                <ccts:PropertyTerm>Transaction Currency</ccts:PropertyTerm>
                <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                <ccts:DataType>Currency_ Code. Type</ccts:DataType>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
codeListID cur:codeListID Optional
codeListAgencyID cur:codeListAgencyID Optional
codeListAgencyName cur:codeListAgencyName Optional
codeListName cur:codeListName Optional
codeListVersionID cur:codeListVersionID Optional
name cur:name Optional
languageID cur:languageID Optional
codeListURI cur:codeListURI Optional
codeListSchemeURI cur:codeListSchemeURI Optional
Collapse Derivation Tree:
Documentation for OASIS Universal Business Language (UBL) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
