Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: DeliveryTermsType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract
Documentation:
ABIE Delivery Terms. Details contains information about the terms of delivery for the set of items to which the transaction relates Delivery Terms

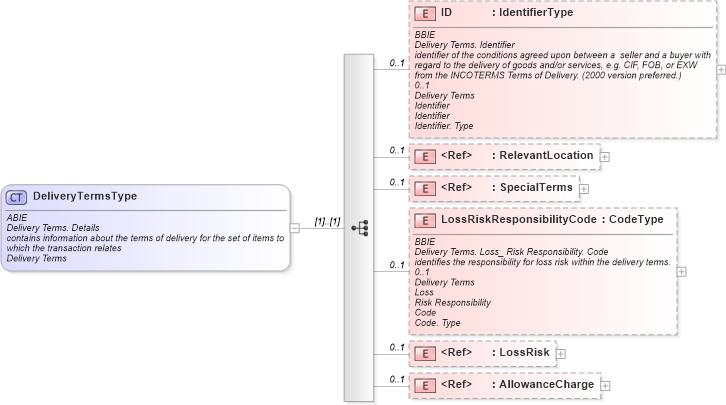

Collapse XSD Schema Diagram:
Drilldown into AllowanceCharge in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into LossRisk in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into LossRiskResponsibilityCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into SpecialTerms in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into RelevantLocation in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into ID in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of DeliveryTermsType in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="DeliveryTermsType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Delivery Terms. Details</ccts:DictionaryEntryName>
                <ccts:Definition>contains information about the terms of delivery for the set of items to which the transaction relates</ccts:Definition>
                <ccts:ObjectClass>Delivery Terms</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="ID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Delivery Terms. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>identifier of the conditions agreed upon between a  seller and a buyer with regard to the delivery of goods and/or services, e.g. CIF, FOB, or EXW from the INCOTERMS Terms of Delivery. (2000 version preferred.)</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Delivery Terms</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:RelevantLocation" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Delivery Terms. Relevant_ Location. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>information directly relating to the location relevant to the terms of delivery specified.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Delivery Terms</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Relevant</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Location</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:Examples>"Warehouse accepts 24 x 7</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:SpecialTerms" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Delivery Terms. Special_ Terms. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>free text description of special conditions relating to delivery terms.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Delivery Terms</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Special</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Terms</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LossRiskResponsibilityCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Delivery Terms. Loss_ Risk Responsibility. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>identifies the responsibility for loss risk within the delivery terms.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Delivery Terms</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Loss</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Risk Responsibility</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:LossRisk" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Delivery Terms. Loss Risk. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>text describing the loss risk related to delivery terms.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Delivery Terms</ccts:ObjectClass>
                        <ccts:PropertyTerm>Loss Risk</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AllowanceCharge" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Delivery Terms. Allowance Charge</ccts:DictionaryEntryName>
                        <ccts:Definition>associates delivery terms with an allowance or charge information.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Delivery Terms</ccts:ObjectClass>
                        <ccts:PropertyTerm>Allowance Charge</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Allowance Charge</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cac:ID 0 1
RelevantLocation cbc:RelevantLocation 0 1
SpecialTerms cbc:SpecialTerms 0 1
LossRiskResponsibilityCode cac:LossRiskResponsibilityCode 0 1
LossRisk cbc:LossRisk 0 1
AllowanceCharge cac:AllowanceCharge 0 1
Collapse Derivation Tree:
Collapse References:
cac:DeliveryTerms
