Definition Type: ComplexType
Name: HazardousGoodsTransitType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract
Documentation:
ABIE Hazardous Goods Transit. Details information related to the shipping and packaging of hazardous goods. Hazardous Goods Transit

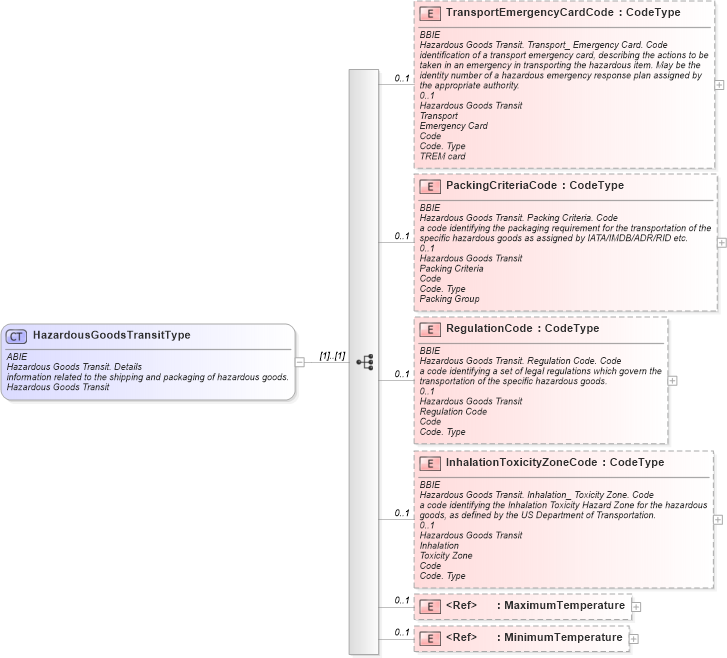

Collapse XSD Schema Diagram:
Drilldown into MinimumTemperature in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into MaximumTemperature in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into InhalationToxicityZoneCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into RegulationCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into PackingCriteriaCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into TransportEmergencyCardCode in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of HazardousGoodsTransitType in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="HazardousGoodsTransitType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Hazardous Goods Transit. Details</ccts:DictionaryEntryName>
                <ccts:Definition>information related to the shipping and packaging of hazardous goods.</ccts:Definition>
                <ccts:ObjectClass>Hazardous Goods Transit</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="TransportEmergencyCardCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Goods Transit. Transport_ Emergency Card. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>identification of a transport emergency card, describing the actions to be taken in an emergency in transporting the hazardous item. May be the identity number of a hazardous emergency response plan assigned by the appropriate authority.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Goods Transit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Transport</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Emergency Card</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>TREM card</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="PackingCriteriaCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Goods Transit. Packing Criteria. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>a code identifying the packaging requirement for the transportation of the specific hazardous goods as assigned by IATA/IMDB/ADR/RID etc.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Goods Transit</ccts:ObjectClass>
                        <ccts:PropertyTerm>Packing Criteria</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Packing Group</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RegulationCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Goods Transit. Regulation Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>a code identifying a set of legal regulations which govern the transportation of the specific hazardous goods.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Goods Transit</ccts:ObjectClass>
                        <ccts:PropertyTerm>Regulation Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="InhalationToxicityZoneCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Goods Transit. Inhalation_ Toxicity Zone. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>a code identifying the Inhalation Toxicity Hazard Zone for the hazardous goods, as defined by the US Department of Transportation.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Goods Transit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Inhalation</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Toxicity Zone</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="MaximumTemperature" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Goods Transit. Maximum_ Temperature. Temperature</ccts:DictionaryEntryName>
                        <ccts:Definition>the maximum temperature at which the hazardous item can be safely transported.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Goods Transit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Maximum</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Temperature</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Temperature</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="MinimumTemperature" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Goods Transit. Minimum_ Temperature. Temperature</ccts:DictionaryEntryName>
                        <ccts:Definition>the minimum temperature at which the hazardous item can be safely transported.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Goods Transit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Minimum</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Temperature</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Temperature</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TransportEmergencyCardCode cac:TransportEmergencyCardCode 0 1
PackingCriteriaCode cac:PackingCriteriaCode 0 1
RegulationCode cac:RegulationCode 0 1
InhalationToxicityZoneCode cac:InhalationToxicityZoneCode 0 1
MaximumTemperature cac:MaximumTemperature 0 1
MinimumTemperature cac:MinimumTemperature 0 1
Collapse Derivation Tree:
Collapse References:
cac:HazardousGoodsTransit
