Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: ID
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Type: udt:IdentifierType
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
BBIE Contact. Identifier identifies the department or employee by a unique identity other than their name when given as a contact. 0..1 Contact Identifier Identifier Identifier. Type "Receivals Clerk"

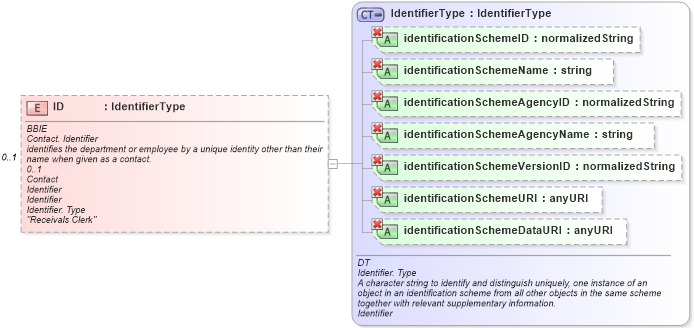

Collapse XSD Schema Diagram:
Drilldown into identificationSchemeDataURI in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into identificationSchemeURI in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into identificationSchemeVersionID in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into identificationSchemeAgencyName in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into identificationSchemeAgencyID in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into identificationSchemeName in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into identificationSchemeID in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into IdentifierType in schema ubl-unspecializeddatatypes-1_0_xsdXSD Diagram of ID in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="ID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>BBIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Contact. Identifier</ccts:DictionaryEntryName>
                <ccts:Definition>identifies the department or employee by a unique identity other than their name when given as a contact.</ccts:Definition>
                <ccts:Cardinality>0..1</ccts:Cardinality>
                <ccts:ObjectClass>Contact</ccts:ObjectClass>
                <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                <ccts:DataType>Identifier. Type</ccts:DataType>
                <ccts:Examples>"Receivals Clerk"</ccts:Examples>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
identificationSchemeID udt:identificationSchemeID Optional
identificationSchemeName udt:identificationSchemeName Optional
identificationSchemeAgencyID udt:identificationSchemeAgencyID Optional
identificationSchemeAgencyName udt:identificationSchemeAgencyName Optional
identificationSchemeVersionID udt:identificationSchemeVersionID Optional
identificationSchemeURI udt:identificationSchemeURI Optional
identificationSchemeDataURI udt:identificationSchemeDataURI Optional
Collapse Derivation Tree:
