Docs for schema item IdentifierType in OASIS Universal Business Language (UBL) TC

Documentation for OASIS Universal Business Language (UBL) TC

Definition Type:	ComplexType
Name:	IdentifierType
Namespace:	urn:oasis:names:specification:ubl:schema:xsd:CoreComponentTypes-1.0
Type:	normalizedString:http://www.w3.org/2001/XMLSchema
Containing Schema:	UBL-CoreComponentTypes-1.0.xsd
Abstract
Documentation:	CCT Identifier. Type A character string to identify and distinguish uniquely, one instance of an object in an identification scheme from all other objects in the same scheme together with relevant supplementary information. Identifier Type

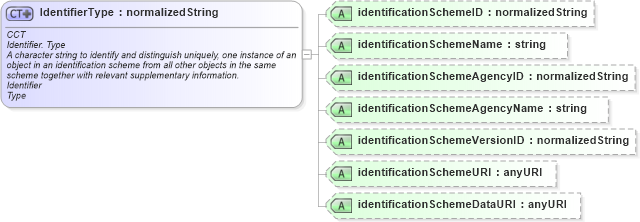

XSD Schema Diagram:

XSD Diagram of IdentifierType in schema ubl-corecomponenttypes-1_0_xsd (OASIS Universal Business Language (UBL) TC)

XSD Schema Code:

<xsd:complexType name="IdentifierType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>CCT</ccts:ComponentType>
                <ccts:DictionaryEntryName>Identifier. Type</ccts:DictionaryEntryName>
                <ccts:Definition>A character string to identify and distinguish uniquely, one instance of an object in an identification scheme from all other objects in the same scheme together with relevant supplementary information.</ccts:Definition>
                <ccts:ObjectClass>Identifier</ccts:ObjectClass>
                <ccts:PropertyTerm>Type</ccts:PropertyTerm>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:extension base="xsd:normalizedString">
            <xsd:attribute name="identificationSchemeID" type="xsd:normalizedString" use="optional" />
            <xsd:attribute name="identificationSchemeName" type="xsd:string" use="optional" />
            <xsd:attribute name="identificationSchemeAgencyID" type="xsd:normalizedString" use="optional" />
            <xsd:attribute name="identificationSchemeAgencyName" type="xsd:string" use="optional" />
            <xsd:attribute name="identificationSchemeVersionID" type="xsd:normalizedString" use="optional" />
            <xsd:attribute name="identificationSchemeURI" type="xsd:anyURI" use="optional" />
            <xsd:attribute name="identificationSchemeDataURI" type="xsd:anyURI" use="optional" />
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>

Child Attributes:

Name	Type	Default Value	Use
identificationSchemeID	cct:identificationSchemeID		Optional
identificationSchemeName	cct:identificationSchemeName		Optional
identificationSchemeAgencyID	cct:identificationSchemeAgencyID		Optional
identificationSchemeAgencyName	cct:identificationSchemeAgencyName		Optional
identificationSchemeVersionID	cct:identificationSchemeVersionID		Optional
identificationSchemeURI	cct:identificationSchemeURI		Optional
identificationSchemeDataURI	cct:identificationSchemeDataURI		Optional
