Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: OrderLineReference
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Type: cac:OrderLineReferenceType
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract

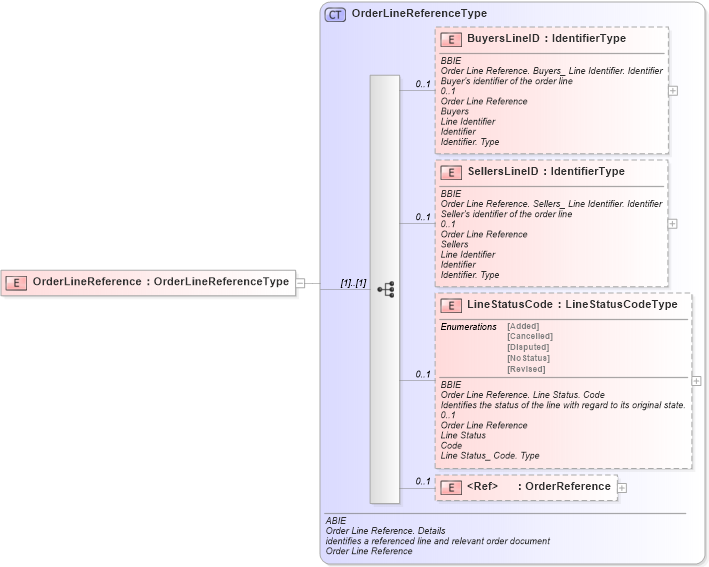

Collapse XSD Schema Diagram:
Drilldown into OrderReference in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into LineStatusCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into SellersLineID in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into BuyersLineID in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into OrderLineReferenceType in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of OrderLineReference in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="OrderLineReference" type="OrderLineReferenceType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BuyersLineID cac:BuyersLineID 0 1
SellersLineID cac:SellersLineID 0 1
LineStatusCode cac:LineStatusCode 0 1
OrderReference cac:OrderReference 0 1
Collapse Derivation Tree:
