Definition Type: ComplexType
Name: PhysicalAttributeType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract
Documentation:
ABIE Physical Attribute. Details information about an identified physical attribute, feature, or characteristic of something. Physical Attribute

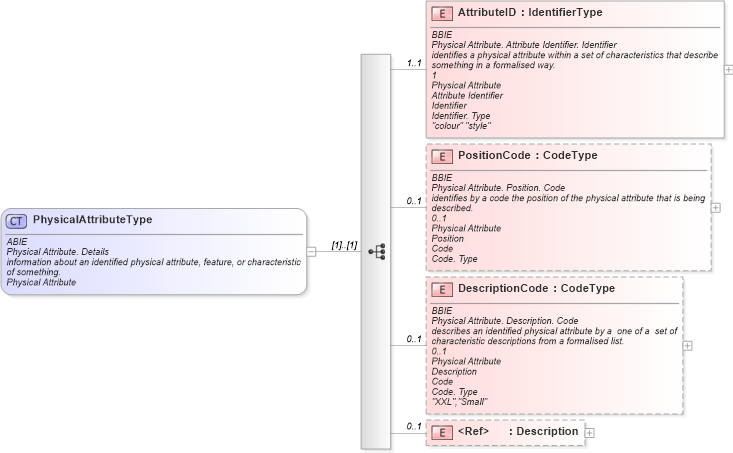

Collapse XSD Schema Diagram:
Drilldown into Description in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into DescriptionCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into PositionCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into AttributeID in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of PhysicalAttributeType in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="PhysicalAttributeType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Physical Attribute. Details</ccts:DictionaryEntryName>
                <ccts:Definition>information about an identified physical attribute, feature, or characteristic of something.</ccts:Definition>
                <ccts:ObjectClass>Physical Attribute</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="AttributeID" type="udt:IdentifierType" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Physical Attribute. Attribute Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>identifies a physical attribute within a set of characteristics that describe something in a formalised way.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Physical Attribute</ccts:ObjectClass>
                        <ccts:PropertyTerm>Attribute Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>"colour" "style"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="PositionCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Physical Attribute. Position. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>identifies by a code the position of the physical attribute that is being described.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Physical Attribute</ccts:ObjectClass>
                        <ccts:PropertyTerm>Position</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DescriptionCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Physical Attribute. Description. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>describes an identified physical attribute by a  one of a  set of characteristic descriptions from a formalised list.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Physical Attribute</ccts:ObjectClass>
                        <ccts:PropertyTerm>Description</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:Examples>"XXL","Small"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Description" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Physical Attribute. Description. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>describes an identified physical attribute by a  narrative description.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Physical Attribute</ccts:ObjectClass>
                        <ccts:PropertyTerm>Description</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AttributeID cac:AttributeID 1 1
PositionCode cac:PositionCode 0 1
DescriptionCode cac:DescriptionCode 0 1
Description cbc:Description 0 1
Collapse Derivation Tree:
Collapse References:
cac:PhysicalAttribute
