Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: AnticipatedMonetaryTotal
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:MonetaryTotalType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

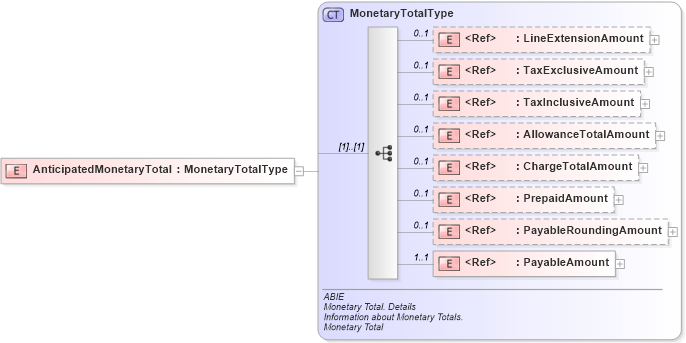

Collapse XSD Schema Diagram:
Drilldown into PayableAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PayableRoundingAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PrepaidAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ChargeTotalAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AllowanceTotalAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TaxInclusiveAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TaxExclusiveAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into LineExtensionAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MonetaryTotalType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of AnticipatedMonetaryTotal in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="AnticipatedMonetaryTotal" type="MonetaryTotalType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineExtensionAmount cbc:LineExtensionAmount 0 1
TaxExclusiveAmount cbc:TaxExclusiveAmount 0 1
TaxInclusiveAmount cbc:TaxInclusiveAmount 0 1
AllowanceTotalAmount cbc:AllowanceTotalAmount 0 1
ChargeTotalAmount cbc:ChargeTotalAmount 0 1
PrepaidAmount cbc:PrepaidAmount 0 1
PayableRoundingAmount cbc:PayableRoundingAmount 0 1
PayableAmount cbc:PayableAmount 1 1
Collapse Derivation Tree:
