Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: ApplicableTaxCategory
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:TaxCategoryType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

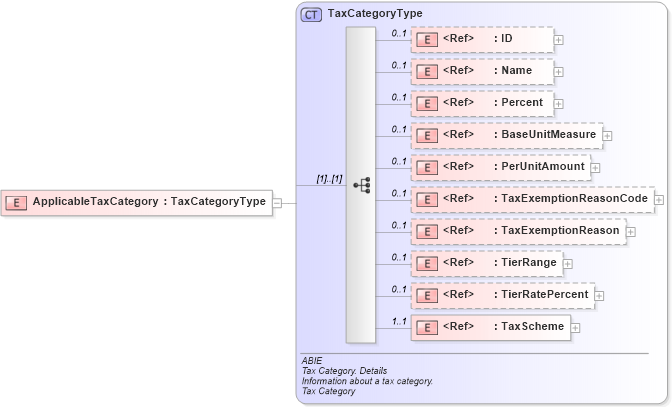

Collapse XSD Schema Diagram:
Drilldown into TaxScheme in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TierRatePercent in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TierRange in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TaxExemptionReason in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TaxExemptionReasonCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PerUnitAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into BaseUnitMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Percent in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Name in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TaxCategoryType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of ApplicableTaxCategory in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="ApplicableTaxCategory" type="TaxCategoryType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
Name cbc:Name 0 1
Percent cbc:Percent 0 1
BaseUnitMeasure cbc:BaseUnitMeasure 0 1
PerUnitAmount cbc:PerUnitAmount 0 1
TaxExemptionReasonCode cbc:TaxExemptionReasonCode 0 1
TaxExemptionReason cbc:TaxExemptionReason 0 1
TierRange cbc:TierRange 0 1
TierRatePercent cbc:TierRatePercent 0 1
TaxScheme cac:TaxScheme 1 1
Collapse Derivation Tree:
