Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: CardAccount
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:CardAccountType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

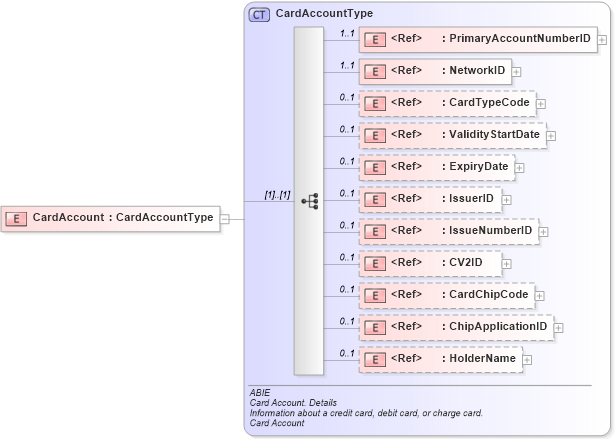

Collapse XSD Schema Diagram:
Drilldown into HolderName in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ChipApplicationID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CardChipCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CV2ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueNumberID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssuerID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ExpiryDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ValidityStartDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CardTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into NetworkID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PrimaryAccountNumberID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CardAccountType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of CardAccount in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="CardAccount" type="CardAccountType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PrimaryAccountNumberID cbc:PrimaryAccountNumberID 1 1
NetworkID cbc:NetworkID 1 1
CardTypeCode cbc:CardTypeCode 0 1
ValidityStartDate cbc:ValidityStartDate 0 1
ExpiryDate cbc:ExpiryDate 0 1
IssuerID cbc:IssuerID 0 1
IssueNumberID cbc:IssueNumberID 0 1
CV2ID cbc:CV2ID 0 1
CardChipCode cbc:CardChipCode 0 1
ChipApplicationID cbc:ChipApplicationID 0 1
HolderName cbc:HolderName 0 1
Collapse Derivation Tree:
