Definition Type: ComplexType
Name: CardAccountType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Card Account. Details Information about a credit card, debit card, or charge card. Card Account

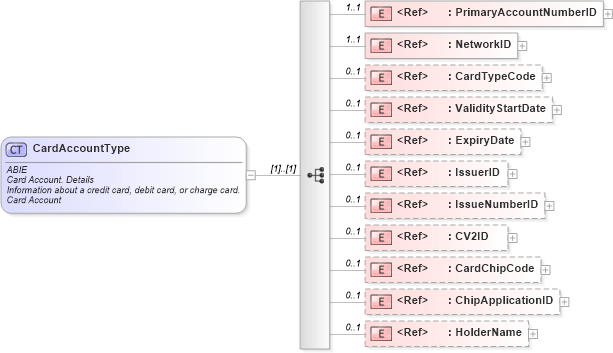

Collapse XSD Schema Diagram:
Drilldown into HolderName in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ChipApplicationID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CardChipCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CV2ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueNumberID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssuerID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ExpiryDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ValidityStartDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CardTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into NetworkID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PrimaryAccountNumberID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of CardAccountType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="CardAccountType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Card Account. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about a credit card, debit card, or charge card.</ccts:Definition>
                <ccts:ObjectClass>Card Account</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:PrimaryAccountNumberID" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Primary_ Account Number. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The card number; the Primary Account Number (PAN).</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Primary</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Account Number</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>4558 XXXX XXXX XXXX (a real card number)</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:NetworkID" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Network. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The card network provider.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Network</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>“VISA”, “MasterCard”, “American Express”</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CardTypeCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Card Type Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The type of card.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Card Type Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:Examples>“Debit Card”, “Credit Card”, “Procurement Card”</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ValidityStartDate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Validity Start Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>The date from which the card is valid.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Validity Start Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ExpiryDate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Expiry Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>The date up to which the card is valid.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Expiry Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:IssuerID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Issuer. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The identifier for the card issuer.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Issuer</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:IssueNumberID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Issue Number. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The card issue number.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Issue Number</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CV2ID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. CV2. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The Card Verification Value.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>CV2</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CardChipCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Card Chip Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The distinction between CHIP and MAG STRIPE cards.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Card Chip Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Chip_ Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ChipApplicationID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Chip_ Application. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>An identifier for the application (AID) on a chip card that provides the information quoted.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Chip</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Application</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:HolderName" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Card Account. Holder. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>The name of the cardholder.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Card Account</ccts:ObjectClass>
                        <ccts:PropertyTerm>Holder</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PrimaryAccountNumberID cbc:PrimaryAccountNumberID 1 1
NetworkID cbc:NetworkID 1 1
CardTypeCode cbc:CardTypeCode 0 1
ValidityStartDate cbc:ValidityStartDate 0 1
ExpiryDate cbc:ExpiryDate 0 1
IssuerID cbc:IssuerID 0 1
IssueNumberID cbc:IssueNumberID 0 1
CV2ID cbc:CV2ID 0 1
CardChipCode cbc:CardChipCode 0 1
ChipApplicationID cbc:ChipApplicationID 0 1
HolderName cbc:HolderName 0 1
Collapse Derivation Tree:
Collapse References:
cac:CardAccount
