Definition Type: Element
Name: CatalogueItemSpecificationUpdateLine
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:CatalogueItemSpecificationUpdateLineType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

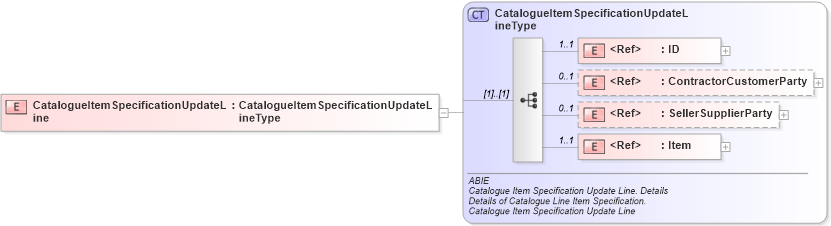

Collapse XSD Schema Diagram:
Drilldown into Item in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SellerSupplierParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ContractorCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CatalogueItemSpecificationUpdateLineType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of CatalogueItemSpecificationUpdateLine in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="CatalogueItemSpecificationUpdateLine" type="CatalogueItemSpecificationUpdateLineType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 1 1
ContractorCustomerParty cac:ContractorCustomerParty 0 1
SellerSupplierParty cac:SellerSupplierParty 0 1
Item cac:Item 1 1
Collapse Derivation Tree:
