Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: CatalogueRequestLine
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:CatalogueRequestLineType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

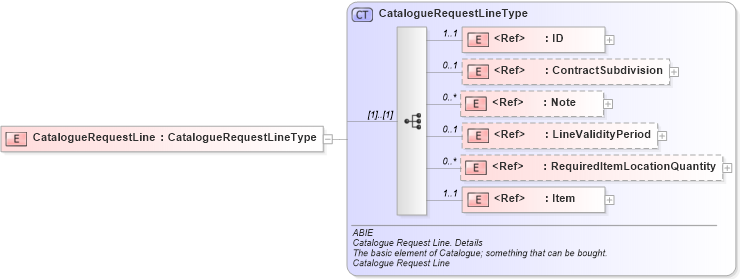

Collapse XSD Schema Diagram:
Drilldown into Item in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into RequiredItemLocationQuantity in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into LineValidityPeriod in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ContractSubdivision in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CatalogueRequestLineType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of CatalogueRequestLine in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="CatalogueRequestLine" type="CatalogueRequestLineType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 1 1
ContractSubdivision cbc:ContractSubdivision 0 1
Note cbc:Note 0 unbounded
LineValidityPeriod cac:LineValidityPeriod 0 1
RequiredItemLocationQuantity cac:RequiredItemLocationQuantity 0 unbounded
Item cac:Item 1 1
Collapse Derivation Tree:
