Definition Type: Element
Name: GoodsItem
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:GoodsItemType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

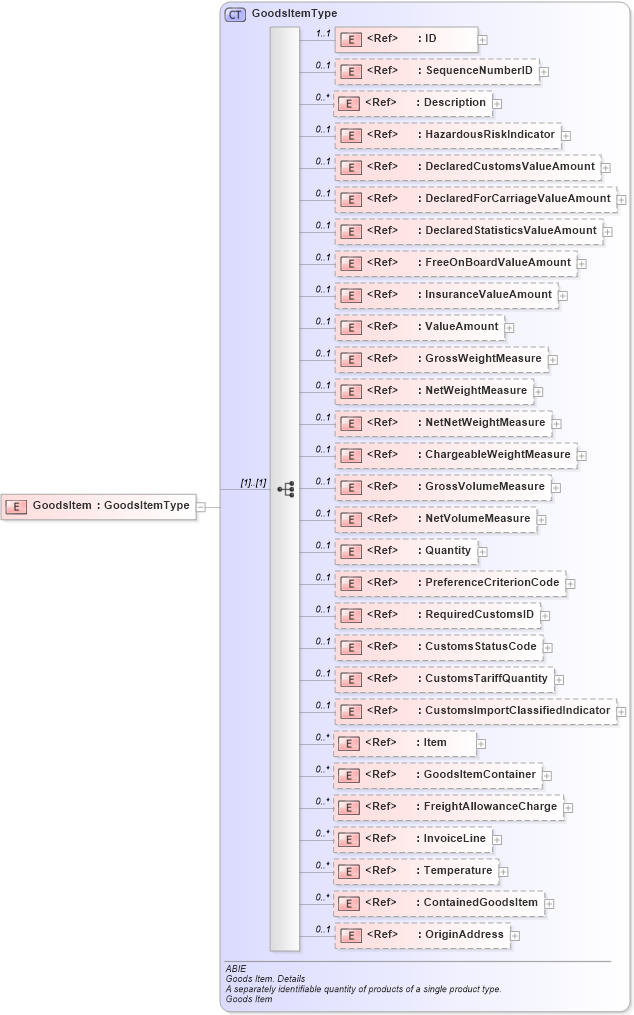

Collapse XSD Schema Diagram:
Drilldown into OriginAddress in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ContainedGoodsItem in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Temperature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into InvoiceLine in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into FreightAllowanceCharge in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into GoodsItemContainer in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Item in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CustomsImportClassifiedIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomsTariffQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomsStatusCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into RequiredCustomsID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PreferenceCriterionCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Quantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into NetVolumeMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into GrossVolumeMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ChargeableWeightMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into NetNetWeightMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into NetWeightMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into GrossWeightMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ValueAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into InsuranceValueAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into FreeOnBoardValueAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DeclaredStatisticsValueAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DeclaredForCarriageValueAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DeclaredCustomsValueAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into HazardousRiskIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Description in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into SequenceNumberID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into GoodsItemType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of GoodsItem in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="GoodsItem" type="GoodsItemType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 1 1
SequenceNumberID cbc:SequenceNumberID 0 1
Description cbc:Description 0 unbounded
HazardousRiskIndicator cbc:HazardousRiskIndicator 0 1
DeclaredCustomsValueAmount cbc:DeclaredCustomsValueAmount 0 1
DeclaredForCarriageValueAmount cbc:DeclaredForCarriageValueAmount 0 1
DeclaredStatisticsValueAmount cbc:DeclaredStatisticsValueAmount 0 1
FreeOnBoardValueAmount cbc:FreeOnBoardValueAmount 0 1
InsuranceValueAmount cbc:InsuranceValueAmount 0 1
ValueAmount cbc:ValueAmount 0 1
GrossWeightMeasure cbc:GrossWeightMeasure 0 1
NetWeightMeasure cbc:NetWeightMeasure 0 1
NetNetWeightMeasure cbc:NetNetWeightMeasure 0 1
ChargeableWeightMeasure cbc:ChargeableWeightMeasure 0 1
GrossVolumeMeasure cbc:GrossVolumeMeasure 0 1
NetVolumeMeasure cbc:NetVolumeMeasure 0 1
Quantity cbc:Quantity 0 1
PreferenceCriterionCode cbc:PreferenceCriterionCode 0 1
RequiredCustomsID cbc:RequiredCustomsID 0 1
CustomsStatusCode cbc:CustomsStatusCode 0 1
CustomsTariffQuantity cbc:CustomsTariffQuantity 0 1
CustomsImportClassifiedIndicator cbc:CustomsImportClassifiedIndicator 0 1
Item cac:Item 0 unbounded
GoodsItemContainer cac:GoodsItemContainer 0 unbounded
FreightAllowanceCharge cac:FreightAllowanceCharge 0 unbounded
InvoiceLine cac:InvoiceLine 0 unbounded
Temperature cac:Temperature 0 unbounded
ContainedGoodsItem cac:ContainedGoodsItem 0 unbounded
OriginAddress cac:OriginAddress 0 1
Collapse Derivation Tree:
