Definition Type: Element
Name: HandlingUnitDespatchLine
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:DespatchLineType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

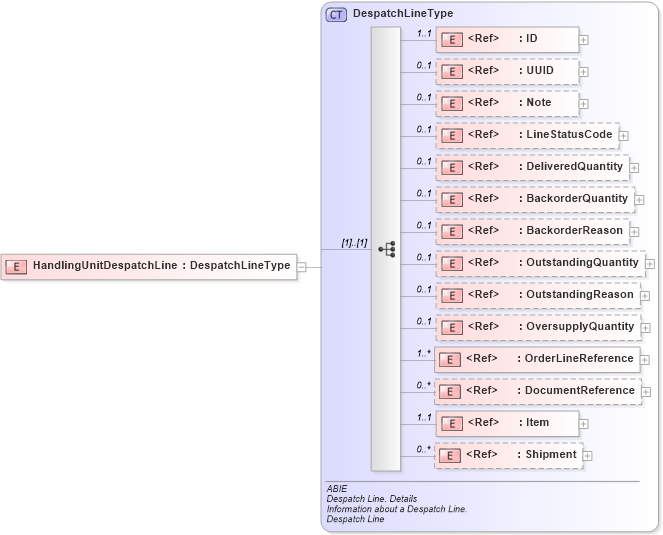

Collapse XSD Schema Diagram:
Drilldown into Shipment in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Item in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OrderLineReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OversupplyQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into OutstandingReason in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into OutstandingQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into BackorderReason in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into BackorderQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DeliveredQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into LineStatusCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DespatchLineType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of HandlingUnitDespatchLine in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="HandlingUnitDespatchLine" type="DespatchLineType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 1 1
UUID cbc:UUID 0 1
Note cbc:Note 0 1
LineStatusCode cbc:LineStatusCode 0 1
DeliveredQuantity cbc:DeliveredQuantity 0 1
BackorderQuantity cbc:BackorderQuantity 0 1
BackorderReason cbc:BackorderReason 0 1
OutstandingQuantity cbc:OutstandingQuantity 0 1
OutstandingReason cbc:OutstandingReason 0 1
OversupplyQuantity cbc:OversupplyQuantity 0 1
OrderLineReference cac:OrderLineReference 1 unbounded
DocumentReference cac:DocumentReference 0 unbounded
Item cac:Item 1 1
Shipment cac:Shipment 0 unbounded
Collapse Derivation Tree:
