Definition Type: Element
Name: IssuerParty
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:PartyType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

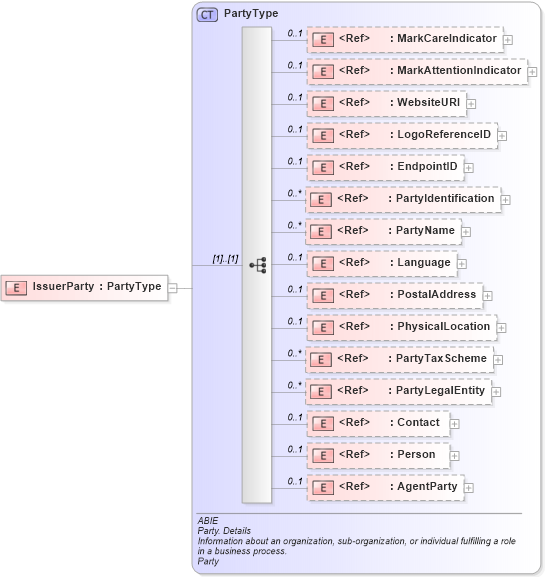

Collapse XSD Schema Diagram:
Drilldown into AgentParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Person in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Contact in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PartyLegalEntity in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PartyTaxScheme in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PhysicalLocation in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PostalAddress in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Language in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PartyName in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PartyIdentification in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into EndpointID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into LogoReferenceID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into WebsiteURI in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MarkAttentionIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MarkCareIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PartyType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of IssuerParty in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="IssuerParty" type="PartyType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MarkCareIndicator cbc:MarkCareIndicator 0 1
MarkAttentionIndicator cbc:MarkAttentionIndicator 0 1
WebsiteURI cbc:WebsiteURI 0 1
LogoReferenceID cbc:LogoReferenceID 0 1
EndpointID cbc:EndpointID 0 1
PartyIdentification cac:PartyIdentification 0 unbounded
PartyName cac:PartyName 0 unbounded
Language cac:Language 0 1
PostalAddress cac:PostalAddress 0 1
PhysicalLocation cac:PhysicalLocation 0 1
PartyTaxScheme cac:PartyTaxScheme 0 unbounded
PartyLegalEntity cac:PartyLegalEntity 0 unbounded
Contact cac:Contact 0 1
Person cac:Person 0 1
AgentParty cac:AgentParty 0 1
Collapse Derivation Tree:
