Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: PartyType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Party. Details Information about an organization, sub-organization, or individual fulfilling a role in a business process. Party

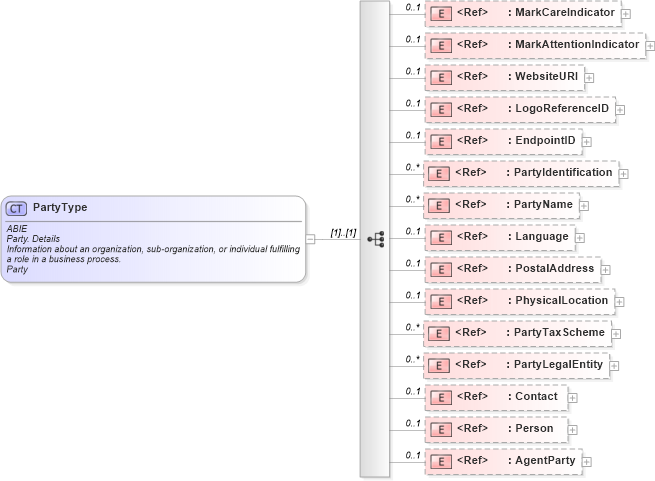

Collapse XSD Schema Diagram:
Drilldown into AgentParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Person in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Contact in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PartyLegalEntity in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PartyTaxScheme in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PhysicalLocation in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PostalAddress in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Language in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PartyName in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PartyIdentification in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into EndpointID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into LogoReferenceID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into WebsiteURI in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MarkAttentionIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MarkCareIndicator in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of PartyType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="PartyType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Party. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about an organization, sub-organization, or individual fulfilling a role in a business process.</ccts:Definition>
                <ccts:ObjectClass>Party</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:MarkCareIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Party. Mark Care_ Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>Indicates whether a party is C/O (care of).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Party</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Mark Care</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:MarkAttentionIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Party. Mark Attention_ Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>Indicates whether a party is 'FAO' (for the attention of).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Party</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Mark Attention</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:WebsiteURI" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Party. Website_ URI. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The Uniform Resource Identifier (URI) of the party.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Party</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Website</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>URI</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:LogoReferenceID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Party. Logo Reference. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>A party's logo.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Party</ccts:ObjectClass>
                        <ccts:PropertyTerm>Logo Reference</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>http://www2.coca-cola.com/images/logo.gif</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:EndpointID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Party. Endpoint Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the end point of the routing service, e.g., EAN Location Number, GLN.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Party</ccts:ObjectClass>
                        <ccts:PropertyTerm>Endpoint Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>5790002221134</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="PartyIdentification" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Party. Party Identification</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Party Identification.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Party</ccts:ObjectClass>
                        <ccts:PropertyTerm>Party Identification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party Identification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="PartyName" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Party. Party Name</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Party Name.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Party</ccts:ObjectClass>
                        <ccts:PropertyTerm>Party Name</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party Name</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Language" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Party. Language</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Language.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Party</ccts:ObjectClass>
                        <ccts:PropertyTerm>Language</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Language</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="PostalAddress" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Party. Postal_ Address. Address</ccts:DictionaryEntryName>
                        <ccts:Definition>The party's postal address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Party</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Postal</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Address</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Address</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="PhysicalLocation" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Party. Physical_ Location. Location</ccts:DictionaryEntryName>
                        <ccts:Definition>The party's physical location.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Party</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Physical</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Location</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Location</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="PartyTaxScheme" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Party. Party Tax Scheme</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Party Tax Scheme.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Party</ccts:ObjectClass>
                        <ccts:PropertyTerm>Party Tax Scheme</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party Tax Scheme</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="PartyLegalEntity" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Party. Party Legal Entity</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Party Legal Entity.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Party</ccts:ObjectClass>
                        <ccts:PropertyTerm>Party Legal Entity</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party Legal Entity</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Contact" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Party. Contact</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Contact.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Party</ccts:ObjectClass>
                        <ccts:PropertyTerm>Contact</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Contact</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Person" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Party. Person</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to a person.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Party</ccts:ObjectClass>
                        <ccts:PropertyTerm>Person</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Person</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AgentParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Party. Agent_ Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to another party who acts as an agent for this party.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Party</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Agent</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MarkCareIndicator cbc:MarkCareIndicator 0 1
MarkAttentionIndicator cbc:MarkAttentionIndicator 0 1
WebsiteURI cbc:WebsiteURI 0 1
LogoReferenceID cbc:LogoReferenceID 0 1
EndpointID cbc:EndpointID 0 1
PartyIdentification cac:PartyIdentification 0 unbounded
PartyName cac:PartyName 0 unbounded
Language cac:Language 0 1
PostalAddress cac:PostalAddress 0 1
PhysicalLocation cac:PhysicalLocation 0 1
PartyTaxScheme cac:PartyTaxScheme 0 unbounded
PartyLegalEntity cac:PartyLegalEntity 0 unbounded
Contact cac:Contact 0 1
Person cac:Person 0 1
AgentParty cac:AgentParty 0 1
Collapse Derivation Tree:
Collapse References:
cac:AgentParty, cac:CarrierParty, cac:ConsigneeParty, cac:ConsignorParty, cac:ContactParty, cac:DeliveryParty, cac:DespatchParty, cac:ExporterParty, cac:FinalDeliveryParty, cac:FreightForwarderParty, cac:ImporterParty, cac:InformationContentProviderParty, cac:IssuerParty, cac:LoadingProofParty, cac:ManufacturerParty, cac:NotifyParty, cac:OriginalDespatchParty, cac:OriginatorParty, cac:OwnerParty, cac:Party, cac:PayeeParty, cac:PreparationParty, cac:ProviderParty, cac:ReceiverParty, cac:RecipientParty, cac:SenderParty, cac:SignatoryParty, cac:TaxRepresentativeParty, cac:WarrantyParty
Documentation for OASIS Universal Business Language (UBL) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
