Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: Package
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:PackageType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

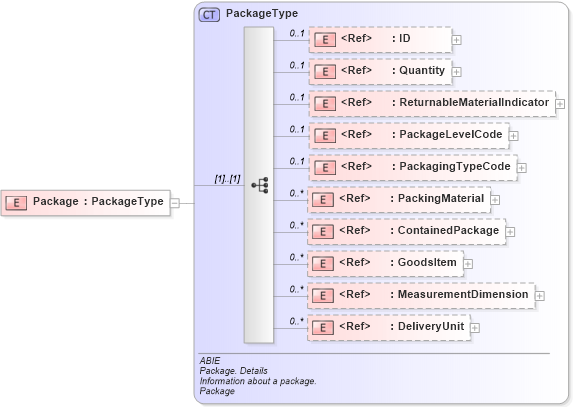

Collapse XSD Schema Diagram:
Drilldown into DeliveryUnit in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into MeasurementDimension in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into GoodsItem in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ContainedPackage in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PackingMaterial in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PackagingTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PackageLevelCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ReturnableMaterialIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Quantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PackageType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of Package in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="Package" type="PackageType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
Quantity cbc:Quantity 0 1
ReturnableMaterialIndicator cbc:ReturnableMaterialIndicator 0 1
PackageLevelCode cbc:PackageLevelCode 0 1
PackagingTypeCode cbc:PackagingTypeCode 0 1
PackingMaterial cbc:PackingMaterial 0 unbounded
ContainedPackage cac:ContainedPackage 0 unbounded
GoodsItem cac:GoodsItem 0 unbounded
MeasurementDimension cac:MeasurementDimension 0 unbounded
DeliveryUnit cac:DeliveryUnit 0 unbounded
Collapse Derivation Tree:
