Definition Type: ComplexType
Name: PaymentMeansType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Payment Means. Details Information about Payment Means. Payment Means

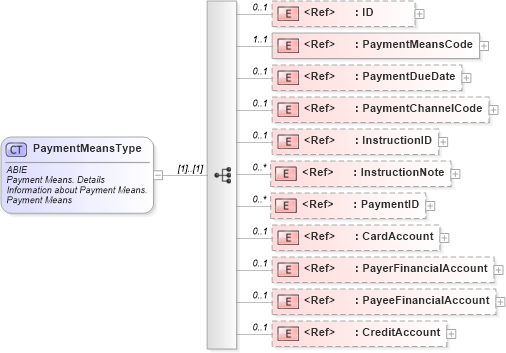

Collapse XSD Schema Diagram:
Drilldown into CreditAccount in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PayeeFinancialAccount in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PayerFinancialAccount in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CardAccount in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PaymentID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into InstructionNote in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into InstructionID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PaymentChannelCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PaymentDueDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PaymentMeansCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of PaymentMeansType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="PaymentMeansType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Payment Means. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about Payment Means.</ccts:Definition>
                <ccts:ObjectClass>Payment Means</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:ID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Payment Means. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the Payment Means.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Payment Means</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PaymentMeansCode" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Payment Means. Payment Means Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The Payment Means expressed as a code</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Payment Means</ccts:ObjectClass>
                        <ccts:PropertyTerm>Payment Means Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Payment Means_ Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PaymentDueDate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Payment Means. Payment Due Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>The date on which payment is due for the Payment Means.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Payment Means</ccts:ObjectClass>
                        <ccts:PropertyTerm>Payment Due Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PaymentChannelCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Payment Means. Payment Channel Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The Payment Channel, expressed as a code.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Payment Means</ccts:ObjectClass>
                        <ccts:PropertyTerm>Payment Channel Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:InstructionID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Payment Means. Instruction Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the Payment Instruction.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Payment Means</ccts:ObjectClass>
                        <ccts:PropertyTerm>Instruction Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:InstructionNote" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Payment Means. Instruction_ Note. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Free-form text applying to the Payment.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Payment Means</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Instruction</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Note</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PaymentID" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Payment Means. Payment Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the Payment(s).</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Payment Means</ccts:ObjectClass>
                        <ccts:PropertyTerm>Payment Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="CardAccount" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Payment Means. Card Account</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Card Account.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Payment Means</ccts:ObjectClass>
                        <ccts:PropertyTerm>Card Account</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Card Account</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="PayerFinancialAccount" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Payment Means. Payer_ Financial Account. Financial Account</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the payer's Financial Account.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Payment Means</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Payer</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Financial Account</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Financial Account</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="PayeeFinancialAccount" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Payment Means. Payee_ Financial Account. Financial Account</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the payee's Financial Account.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Payment Means</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Payee</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Financial Account</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Financial Account</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="CreditAccount" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Payment Means. Credit Account</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Credit Account.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Payment Means</ccts:ObjectClass>
                        <ccts:PropertyTerm>Credit Account</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Credit Account</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
PaymentMeansCode cbc:PaymentMeansCode 1 1
PaymentDueDate cbc:PaymentDueDate 0 1
PaymentChannelCode cbc:PaymentChannelCode 0 1
InstructionID cbc:InstructionID 0 1
InstructionNote cbc:InstructionNote 0 unbounded
PaymentID cbc:PaymentID 0 unbounded
CardAccount cac:CardAccount 0 1
PayerFinancialAccount cac:PayerFinancialAccount 0 1
PayeeFinancialAccount cac:PayeeFinancialAccount 0 1
CreditAccount cac:CreditAccount 0 1
Collapse Derivation Tree:
Collapse References:
cac:PaymentMeans
