Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: ReminderLine
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:ReminderLineType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

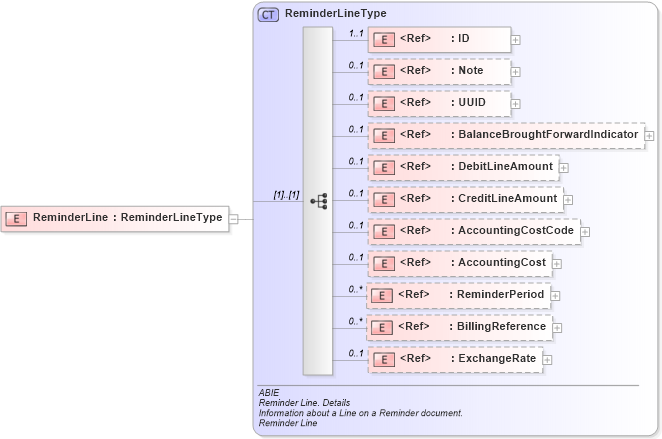

Collapse XSD Schema Diagram:
Drilldown into ExchangeRate in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into BillingReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ReminderPeriod in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AccountingCost in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AccountingCostCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CreditLineAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DebitLineAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into BalanceBroughtForwardIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ReminderLineType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of ReminderLine in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="ReminderLine" type="ReminderLineType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 1 1
Note cbc:Note 0 1
UUID cbc:UUID 0 1
BalanceBroughtForwardIndicator cbc:BalanceBroughtForwardIndicator 0 1
DebitLineAmount cbc:DebitLineAmount 0 1
CreditLineAmount cbc:CreditLineAmount 0 1
AccountingCostCode cbc:AccountingCostCode 0 1
AccountingCost cbc:AccountingCost 0 1
ReminderPeriod cac:ReminderPeriod 0 unbounded
BillingReference cac:BillingReference 0 unbounded
ExchangeRate cac:ExchangeRate 0 1
Collapse Derivation Tree:
