Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: StatementLine
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:StatementLineType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

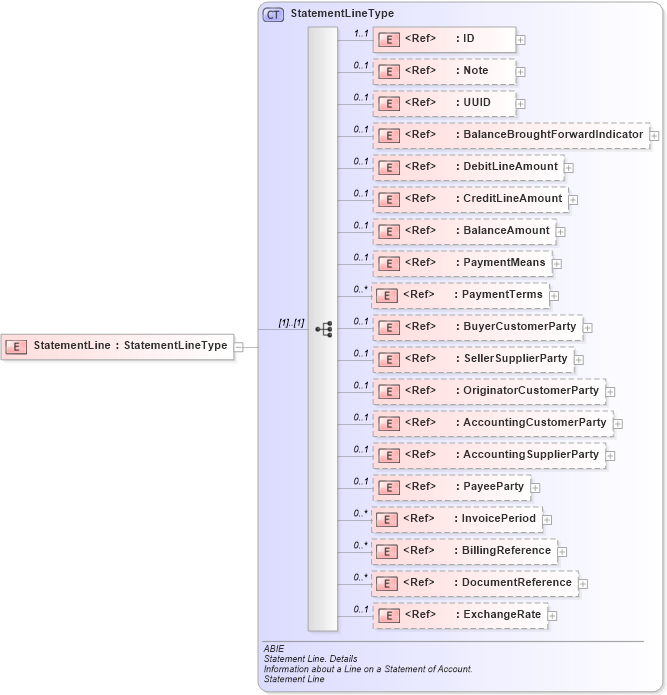

Collapse XSD Schema Diagram:
Drilldown into ExchangeRate in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into BillingReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into InvoicePeriod in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PayeeParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AccountingSupplierParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AccountingCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OriginatorCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SellerSupplierParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into BuyerCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PaymentTerms in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PaymentMeans in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into BalanceAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CreditLineAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DebitLineAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into BalanceBroughtForwardIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into StatementLineType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of StatementLine in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="StatementLine" type="StatementLineType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 1 1
Note cbc:Note 0 1
UUID cbc:UUID 0 1
BalanceBroughtForwardIndicator cbc:BalanceBroughtForwardIndicator 0 1
DebitLineAmount cbc:DebitLineAmount 0 1
CreditLineAmount cbc:CreditLineAmount 0 1
BalanceAmount cbc:BalanceAmount 0 1
PaymentMeans cac:PaymentMeans 0 1
PaymentTerms cac:PaymentTerms 0 unbounded
BuyerCustomerParty cac:BuyerCustomerParty 0 1
SellerSupplierParty cac:SellerSupplierParty 0 1
OriginatorCustomerParty cac:OriginatorCustomerParty 0 1
AccountingCustomerParty cac:AccountingCustomerParty 0 1
AccountingSupplierParty cac:AccountingSupplierParty 0 1
PayeeParty cac:PayeeParty 0 1
InvoicePeriod cac:InvoicePeriod 0 unbounded
BillingReference cac:BillingReference 0 unbounded
DocumentReference cac:DocumentReference 0 unbounded
ExchangeRate cac:ExchangeRate 0 1
Collapse Derivation Tree:
