Definition Type: ComplexType
Name: TaxSchemeType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Tax Scheme. Details Information about a tax scheme. Tax Scheme

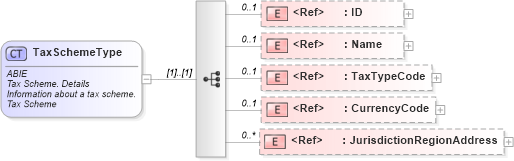

Collapse XSD Schema Diagram:
Drilldown into JurisdictionRegionAddress in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CurrencyCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TaxTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Name in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of TaxSchemeType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="TaxSchemeType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Tax Scheme. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about a tax scheme.</ccts:Definition>
                <ccts:ObjectClass>Tax Scheme</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:ID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Tax Scheme. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the tax scheme.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Tax Scheme</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>"VAT", "GST"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Name" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Tax Scheme. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>The name of the tax scheme.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Tax Scheme</ccts:ObjectClass>
                        <ccts:PropertyTerm>Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name. Type</ccts:DataType>
                        <ccts:Examples>"Value Added Tax", "Wholesale Tax", "Sales Tax", "State Tax"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:TaxTypeCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Tax Scheme. Tax Type Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>An identifier for the tax type.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Tax Scheme</ccts:ObjectClass>
                        <ccts:PropertyTerm>Tax Type Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:Examples>"Consumption", "Sales"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CurrencyCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Tax Scheme. Currency Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The currency in which the tax is collected and reported, expressed as a code.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Tax Scheme</ccts:ObjectClass>
                        <ccts:PropertyTerm>Currency Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Currency_ Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="JurisdictionRegionAddress" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Tax Scheme. Jurisdiction Region_ Address. Address</ccts:DictionaryEntryName>
                        <ccts:Definition>An association with Address (of taxation jurisdiction).</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Tax Scheme</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Jurisdiction Region</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Address</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Address</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
Name cbc:Name 0 1
TaxTypeCode cbc:TaxTypeCode 0 1
CurrencyCode cbc:CurrencyCode 0 1
JurisdictionRegionAddress cac:JurisdictionRegionAddress 0 unbounded
Collapse Derivation Tree:
Collapse References:
cac:TaxScheme
