Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: TransportEvent
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:TransportEventType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

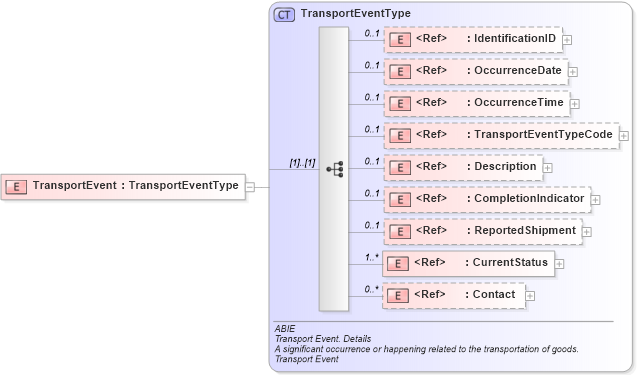

Collapse XSD Schema Diagram:
Drilldown into Contact in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CurrentStatus in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ReportedShipment in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CompletionIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Description in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TransportEventTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into OccurrenceTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into OccurrenceDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IdentificationID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TransportEventType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of TransportEvent in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="TransportEvent" type="TransportEventType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IdentificationID cbc:IdentificationID 0 1
OccurrenceDate cbc:OccurrenceDate 0 1
OccurrenceTime cbc:OccurrenceTime 0 1
TransportEventTypeCode cbc:TransportEventTypeCode 0 1
Description cbc:Description 0 1
CompletionIndicator cbc:CompletionIndicator 0 1
ReportedShipment cac:ReportedShipment 0 1
CurrentStatus cac:CurrentStatus 1 unbounded
Contact cac:Contact 0 unbounded
Collapse Derivation Tree:
