Definition Type: ComplexType
Name: TransportEventType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Transport Event. Details A significant occurrence or happening related to the transportation of goods. Transport Event

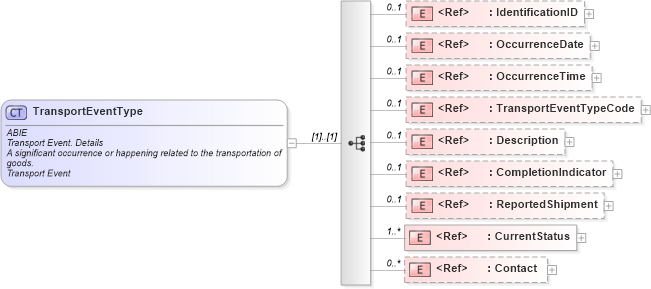

Collapse XSD Schema Diagram:
Drilldown into Contact in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CurrentStatus in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ReportedShipment in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CompletionIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Description in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TransportEventTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into OccurrenceTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into OccurrenceDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IdentificationID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of TransportEventType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="TransportEventType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Transport Event. Details</ccts:DictionaryEntryName>
                <ccts:Definition>A significant occurrence or happening related to the transportation of goods.</ccts:Definition>
                <ccts:ObjectClass>Transport Event</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:IdentificationID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Event. Identification. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>An identifier for the event.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Event</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identification</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:OccurrenceDate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Event. Occurrence Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>The date of an occurrence of the event.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Event</ccts:ObjectClass>
                        <ccts:PropertyTerm>Occurrence Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:OccurrenceTime" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Event. Occurrence Time. Time</ccts:DictionaryEntryName>
                        <ccts:Definition>The time of an occurrence of the event.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Event</ccts:ObjectClass>
                        <ccts:PropertyTerm>Occurrence Time</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Time</ccts:RepresentationTerm>
                        <ccts:DataType>Time. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:TransportEventTypeCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Event. Transport Event Type Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>A code specifying the type of event.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Event</ccts:ObjectClass>
                        <ccts:PropertyTerm>Transport Event Type Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Description" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Event. Description. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>A textual description of the event.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Event</ccts:ObjectClass>
                        <ccts:PropertyTerm>Description</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CompletionIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Event. Completion_ Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>Indicates if this event is completed.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Event</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Completion</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ReportedShipment" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Event. Reported_ Shipment. Shipment</ccts:DictionaryEntryName>
                        <ccts:Definition>Information about the separately identifiable collection of goods items (available to be) transported from one consignor to one consignee via one or more modes of transport.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Event</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Reported</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Shipment</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Shipment</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="CurrentStatus" minOccurs="1" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Event. Current_ Status. Status</ccts:DictionaryEntryName>
                        <ccts:Definition>The status of the event.</ccts:Definition>
                        <ccts:Cardinality>1..n</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Event</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Current</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Status</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Status</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Contact" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Event. Contact</ccts:DictionaryEntryName>
                        <ccts:Definition>Any contacts for the event.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Event</ccts:ObjectClass>
                        <ccts:PropertyTerm>Contact</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Contact</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IdentificationID cbc:IdentificationID 0 1
OccurrenceDate cbc:OccurrenceDate 0 1
OccurrenceTime cbc:OccurrenceTime 0 1
TransportEventTypeCode cbc:TransportEventTypeCode 0 1
Description cbc:Description 0 1
CompletionIndicator cbc:CompletionIndicator 0 1
ReportedShipment cac:ReportedShipment 0 1
CurrentStatus cac:CurrentStatus 1 unbounded
Contact cac:Contact 0 unbounded
Collapse Derivation Tree:
Collapse References:
cac:TransportEvent
