Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: TransportHandlingUnitType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Transport Handling Unit. Details A uniquely identifiable physical unit consisting of one or more packages (not necessarily containing the same articles) for enabling physical handling during the transport process. Transport Handling Unit Logistics Unit, Handling Unit, THU

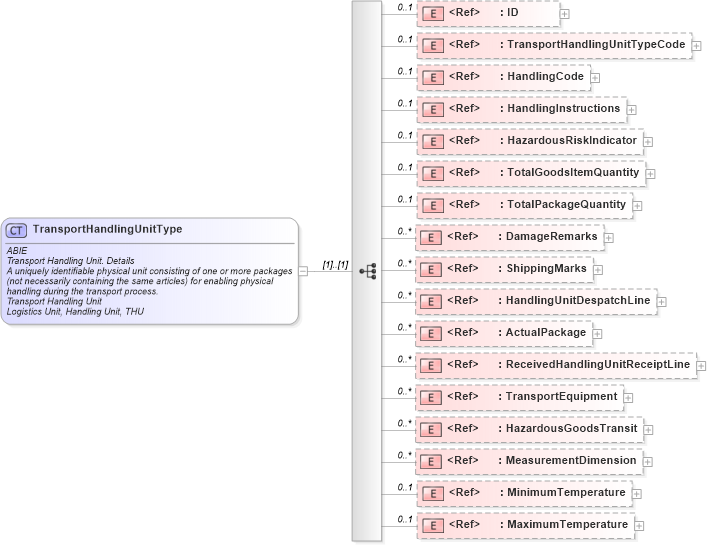

Collapse XSD Schema Diagram:
Drilldown into MaximumTemperature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into MinimumTemperature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into MeasurementDimension in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into HazardousGoodsTransit in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TransportEquipment in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ReceivedHandlingUnitReceiptLine in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ActualPackage in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into HandlingUnitDespatchLine in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ShippingMarks in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DamageRemarks in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TotalPackageQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TotalGoodsItemQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into HazardousRiskIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into HandlingInstructions in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into HandlingCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TransportHandlingUnitTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of TransportHandlingUnitType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="TransportHandlingUnitType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Transport Handling Unit. Details</ccts:DictionaryEntryName>
                <ccts:Definition>A uniquely identifiable physical unit consisting of one or more packages (not necessarily containing the same articles) for enabling physical handling during the transport process.</ccts:Definition>
                <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                <ccts:AlternativeBusinessTerms>Logistics Unit, Handling Unit, THU</ccts:AlternativeBusinessTerms>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:ID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the transport handling unit.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:TransportHandlingUnitTypeCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Transport Handling Unit Type Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The type of transport handling unit, expressed as a code.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTerm>Transport Handling Unit Type Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:HandlingCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Handling Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The handling required for a shipment, expressed as a code.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTerm>Handling Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Special Handling</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:HandlingInstructions" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Handling_ Instructions. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Free-form text describing handling instructions for a shipment.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Handling</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Instructions</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:HazardousRiskIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Hazardous Risk_ Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>Indicates whether the shipment contains hazardous materials.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Hazardous Risk</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                        <ccts:Examples>Default is negative</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:TotalGoodsItemQuantity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Total_ Goods Item Quantity. Quantity</ccts:DictionaryEntryName>
                        <ccts:Definition>The total number of goods items in the transport handling unit.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Total</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Goods Item Quantity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Quantity</ccts:RepresentationTerm>
                        <ccts:DataType>Quantity. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:TotalPackageQuantity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Total_ Package Quantity. Quantity</ccts:DictionaryEntryName>
                        <ccts:Definition>The total number of packages in the transport handling unit.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Total</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Package Quantity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Quantity</ccts:RepresentationTerm>
                        <ccts:DataType>Quantity. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:DamageRemarks" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Damage_ Remarks. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Description of a type of damage.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Damage</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Remarks</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ShippingMarks" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Shipping_ Marks. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Free-form description of the marks and numbers on a transport unit or package.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Shipping</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Marks</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Marks and Numbers, Shipping Marks</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="HandlingUnitDespatchLine" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Handling Unit_ Despatch Line. Despatch Line</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Handling Unit Despatch Line.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Handling Unit</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Despatch Line</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Despatch Line</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ActualPackage" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Actual_ Package. Package</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Actual Package.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Actual</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Package</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Package</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ReceivedHandlingUnitReceiptLine" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Received Handling Unit_ Receipt Line. Receipt Line</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Receipt Line.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Received Handling Unit</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Receipt Line</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Receipt Line</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="TransportEquipment" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Transport Equipment</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Transport Equipment.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTerm>Transport Equipment</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Transport Equipment</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="HazardousGoodsTransit" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Hazardous Goods Transit</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to information about the transportation of hazardous goods.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTerm>Hazardous Goods Transit</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Hazardous Goods Transit</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="MeasurementDimension" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Measurement_ Dimension. Dimension</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Dimension.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Measurement</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Dimension</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Dimension</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="MinimumTemperature" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Minimum_ Temperature. Temperature</ccts:DictionaryEntryName>
                        <ccts:Definition>The minimum required operating temperature.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Minimum</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Temperature</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Temperature</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="MaximumTemperature" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Maximum_ Temperature. Temperature</ccts:DictionaryEntryName>
                        <ccts:Definition>The maximum required operating temperature.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Maximum</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Temperature</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Temperature</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
TransportHandlingUnitTypeCode cbc:TransportHandlingUnitTypeCode 0 1
HandlingCode cbc:HandlingCode 0 1
HandlingInstructions cbc:HandlingInstructions 0 1
HazardousRiskIndicator cbc:HazardousRiskIndicator 0 1
TotalGoodsItemQuantity cbc:TotalGoodsItemQuantity 0 1
TotalPackageQuantity cbc:TotalPackageQuantity 0 1
DamageRemarks cbc:DamageRemarks 0 unbounded
ShippingMarks cbc:ShippingMarks 0 unbounded
HandlingUnitDespatchLine cac:HandlingUnitDespatchLine 0 unbounded
ActualPackage cac:ActualPackage 0 unbounded
ReceivedHandlingUnitReceiptLine cac:ReceivedHandlingUnitReceiptLine 0 unbounded
TransportEquipment cac:TransportEquipment 0 unbounded
HazardousGoodsTransit cac:HazardousGoodsTransit 0 unbounded
MeasurementDimension cac:MeasurementDimension 0 unbounded
MinimumTemperature cac:MinimumTemperature 0 1
MaximumTemperature cac:MaximumTemperature 0 1
Collapse Derivation Tree:
Collapse References:
cac:TransportHandlingUnit
Documentation for OASIS Universal Business Language (UBL) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
