Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: UBLExtension
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonExtensionComponents-2
Type: ext:UBLExtensionType
Containing Schema: UBL-CommonExtensionComponents-2.0.xsd
Abstract
Documentation:
A single extension for private use.

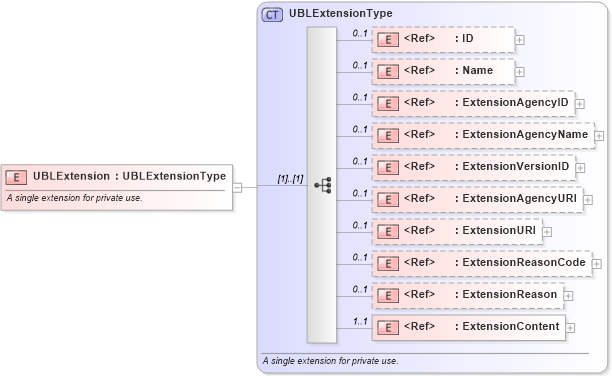

Collapse XSD Schema Diagram:
Drilldown into ExtensionContent in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into ExtensionReason in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into ExtensionReasonCode in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into ExtensionURI in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into ExtensionAgencyURI in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into ExtensionVersionID in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into ExtensionAgencyName in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into ExtensionAgencyID in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into Name in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLExtensionType in schema ubl-commonextensioncomponents-2_0_xsdXSD Diagram of UBLExtension in schema ubl-commonextensioncomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="UBLExtension" type="UBLExtensionType">
    <xsd:annotation>
        <xsd:documentation>
        A single extension for private use.
      </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
Name cbc:Name 0 1
ExtensionAgencyID ext:ExtensionAgencyID 0 1
ExtensionAgencyName ext:ExtensionAgencyName 0 1
ExtensionVersionID ext:ExtensionVersionID 0 1
ExtensionAgencyURI ext:ExtensionAgencyURI 0 1
ExtensionURI ext:ExtensionURI 0 1
ExtensionReasonCode ext:ExtensionReasonCode 0 1
ExtensionReason ext:ExtensionReason 0 1
ExtensionContent ext:ExtensionContent 1 1
Collapse Derivation Tree:
