Definition Type: ComplexType
Name: UBLExtensionType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonExtensionComponents-2
Containing Schema: UBL-CommonExtensionComponents-2.0.xsd
Abstract
Documentation:
A single extension for private use.

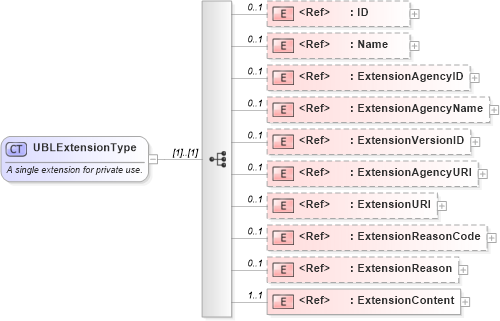

Collapse XSD Schema Diagram:
Drilldown into ExtensionContent in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into ExtensionReason in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into ExtensionReasonCode in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into ExtensionURI in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into ExtensionAgencyURI in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into ExtensionVersionID in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into ExtensionAgencyName in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into ExtensionAgencyID in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into Name in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of UBLExtensionType in schema ubl-commonextensioncomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="UBLExtensionType">
    <xsd:annotation>
        <xsd:documentation>
        A single extension for private use.
      </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:ID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Extension. Identifier</ccts:DictionaryEntryName>
                        <ccts:Version />
                        <ccts:Definition>An identifier for the Extension assigned by the creator of the extension.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Extension</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Name" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Extension. Name</ccts:DictionaryEntryName>
                        <ccts:Version />
                        <ccts:Definition>A name for the Extension assigned by the creator of the extension.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Extension</ccts:ObjectClass>
                        <ccts:PropertyTerm>Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ExtensionAgencyID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
            An agency that maintains one or more Extensions.
          </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ExtensionAgencyName" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
            The name of the agency that maintains the Extension.
          </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ExtensionVersionID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
            The version of the Extension.
          </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ExtensionAgencyURI" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
            A URI for the Agency that maintains the Extension.
          </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ExtensionURI" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
            A URI for the Extension.
          </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ExtensionReasonCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
            A code for reason the Extension is being included.
          </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ExtensionReason" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
            A description of the reason for the Extension.
          </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ExtensionContent" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
            The definition of the extension content.
          </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
Name cbc:Name 0 1
ExtensionAgencyID ext:ExtensionAgencyID 0 1
ExtensionAgencyName ext:ExtensionAgencyName 0 1
ExtensionVersionID ext:ExtensionVersionID 0 1
ExtensionAgencyURI ext:ExtensionAgencyURI 0 1
ExtensionURI ext:ExtensionURI 0 1
ExtensionReasonCode ext:ExtensionReasonCode 0 1
ExtensionReason ext:ExtensionReason 0 1
ExtensionContent ext:ExtensionContent 1 1
Collapse Derivation Tree:
Collapse References:
ext:UBLExtension
