Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: background
Namespace: urn:schemas-microsoft-com:vml
Type: v:backgroundElt
Containing Schema: vml.xsd
Abstract

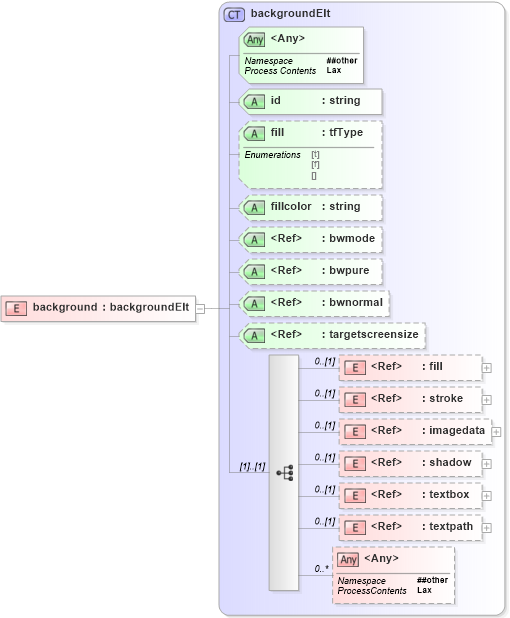

Collapse XSD Schema Diagram:
Drilldown into textpath in schema vml_xsd Drilldown into textbox in schema vml_xsd Drilldown into shadow in schema vml_xsd Drilldown into imagedata in schema vml_xsd Drilldown into stroke in schema vml_xsd Drilldown into fill in schema vml_xsd Drilldown into targetscreensize in schema office_xsd Drilldown into bwnormal in schema office_xsd Drilldown into bwpure in schema office_xsd Drilldown into bwmode in schema office_xsd Drilldown into fillcolor in schema vml_xsd Drilldown into fill in schema vml_xsd Drilldown into id in schema vml_xsd Drilldown into backgroundElt in schema vml_xsdXSD Diagram of background in schema vml_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="background" type="backgroundElt" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fill v:fill 0 (1)
stroke v:stroke 0 (1)
imagedata v:imagedata 0 (1)
shadow v:shadow 0 (1)
textbox v:textbox 0 (1)
textpath v:textpath 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id v:id Required
fill v:fill Optional
fillcolor v:fillcolor Optional
bwmode o:bwmode Optional
bwpure o:bwpure Optional
bwnormal o:bwnormal Optional
targetscreensize o:targetscreensize Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
