Definition Type: Element
Name: line
Namespace: urn:schemas-microsoft-com:vml
Type: v:lineElt
Containing Schema: vml.xsd
Abstract

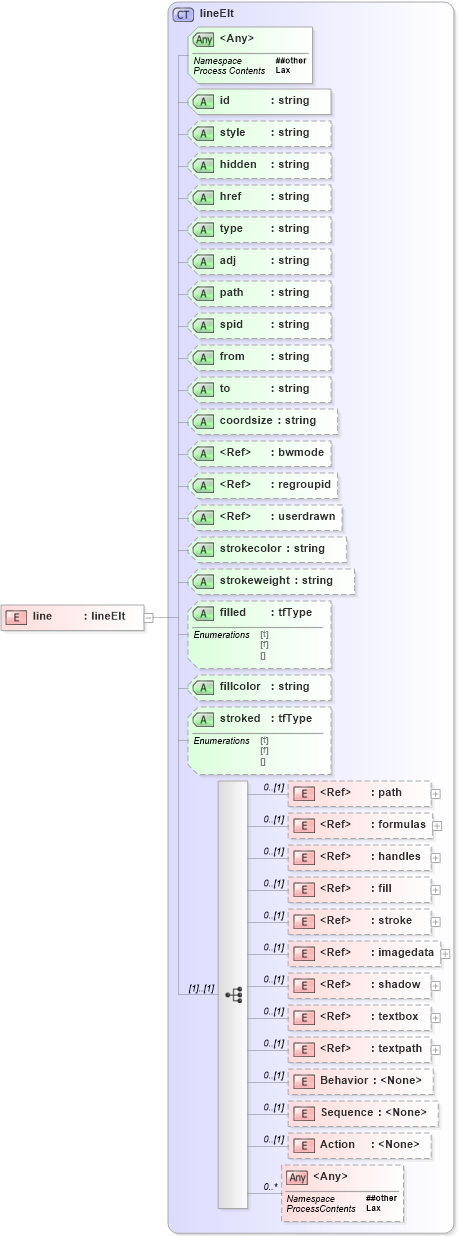

Collapse XSD Schema Diagram:
Drilldown into Action in schema vml_xsd Drilldown into Sequence in schema vml_xsd Drilldown into Behavior in schema vml_xsd Drilldown into textpath in schema vml_xsd Drilldown into textbox in schema vml_xsd Drilldown into shadow in schema vml_xsd Drilldown into imagedata in schema vml_xsd Drilldown into stroke in schema vml_xsd Drilldown into fill in schema vml_xsd Drilldown into handles in schema vml_xsd Drilldown into formulas in schema vml_xsd Drilldown into path in schema vml_xsd Drilldown into stroked in schema vml_xsd Drilldown into fillcolor in schema vml_xsd Drilldown into filled in schema vml_xsd Drilldown into strokeweight in schema vml_xsd Drilldown into strokecolor in schema vml_xsd Drilldown into userdrawn in schema office_xsd Drilldown into regroupid in schema office_xsd Drilldown into bwmode in schema office_xsd Drilldown into coordsize in schema vml_xsd Drilldown into to in schema vml_xsd Drilldown into from in schema vml_xsd Drilldown into spid in schema vml_xsd Drilldown into path in schema vml_xsd Drilldown into adj in schema vml_xsd Drilldown into type in schema vml_xsd Drilldown into href in schema vml_xsd Drilldown into hidden in schema vml_xsd Drilldown into style in schema vml_xsd Drilldown into id in schema vml_xsd Drilldown into lineElt in schema vml_xsdXSD Diagram of line in schema vml_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="line" type="lineElt" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
path v:path 0 (1)
formulas v:formulas 0 (1)
handles v:handles 0 (1)
fill v:fill 0 (1)
stroke v:stroke 0 (1)
imagedata v:imagedata 0 (1)
shadow v:shadow 0 (1)
textbox v:textbox 0 (1)
textpath v:textpath 0 (1)
Behavior v:Behavior 0 (1)
Sequence v:Sequence 0 (1)
Action v:Action 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id v:id Required
style v:style Optional
hidden v:hidden Optional
href v:href Optional
type v:type Optional
adj v:adj Optional
path v:path Optional
spid v:spid Optional
from v:from Optional
to v:to Optional
coordsize v:coordsize Optional
bwmode o:bwmode Optional
regroupid o:regroupid Optional
userdrawn o:userdrawn Optional
strokecolor v:strokecolor Optional
strokeweight v:strokeweight Optional
filled v:filled Optional
fillcolor v:fillcolor Optional
stroked v:stroked Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
